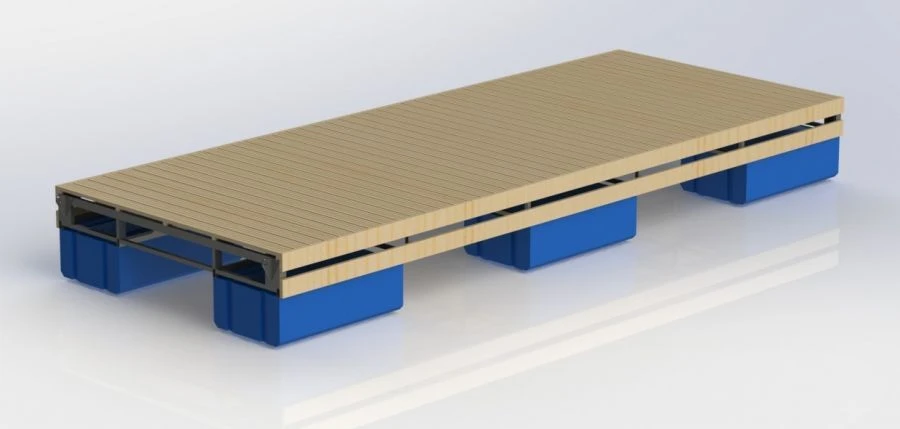

Pontoon section "Ladoga"

The pontoon section of the pier type "Ladoga" with overall dimensions of 6,0x2,4 m with load capacity of 950 kg has: steel frame, galvanised in accordance with GOST 9. 307-89, modules of the floating pier "Ladoga".307-89, buoyancy modules H-400 in quantity of six pieces, made of rotomoulding polyethylene of mark UR-644 with wall thickness 6-8 mm, with embedded elements for fastening to the frame, decking from impregnated board of coniferous species 120x28 mm with antiskid cutting. The pontoon section is designed for mooring small vessels. Hull strength and seaworthiness of the mooring section provide safe operation on rivers, lakes and reservoirs and closed waters at a distance from the shore up to 3 000 m and wave height not more than 0.5 metres
