Available for Import

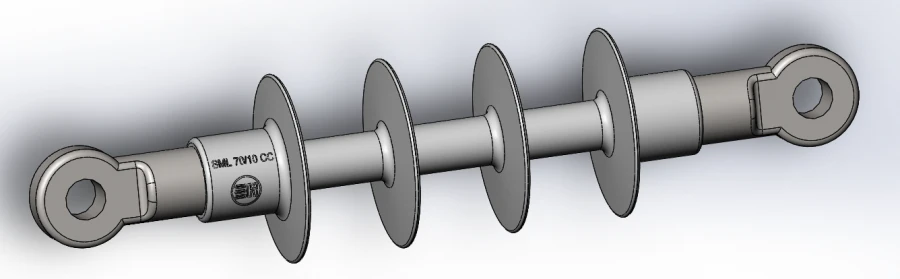

Polymer Insulator SML 70/10-3CC for Power Line Insulation and Support
Manufacturer:
DAZ LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The insulators are designed for insulation and fastening of wires and lightning protection ropes of overhead power lines (hereinafter - overhead lines) and switchgear of switchgears of power stations and substations of alternating current with voltage up to 35 kV at ambient temperature from minus 60 °? to plus 50 °?, located at an altitude of up to 1000 m above sea level in areas with I-IV degree of pollution according to GOST 9920-89.
Specifications
Rated operating voltage
10 kV
Leakage path length
410 mm
Destructive mechanical force in tension
70000
Section length
321 mm
Withstand voltage of industrial frequency in dry condition
65 kV
Withstand voltage of industrial frequency in the rain
45 kV
Withstand voltage of lightning impulse
120 kV
Share your requirements for a quick response!
Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer
Delivery & Payment
Shipping Terms
Delivery Time
Sea freight: 30-60 days (depending on destination)
Air freight: 14-21 days (for urgent orders)
Payment Methods
