Polymer Insulator OCK 10-110-B05-2 UHL1 for Secure Electrical Insulation
Manufacturer:
ENERGIYA + 21 OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Isolator supporting polymer outdoor installation is designed for isolation and fixing of current-carrying parts in electrical apparatus, switchgear of electrical stations and substations of alternating current voltage of 110 kV with frequency up to 100 Hz.Climatic version of the insulator UHL, category of placement 1 according to GOST 15150.Insulators are designed to work at an altitude of not more than 1000 m above sea level at ambient air temperature from minus 60C to plus 50C.
Specifications

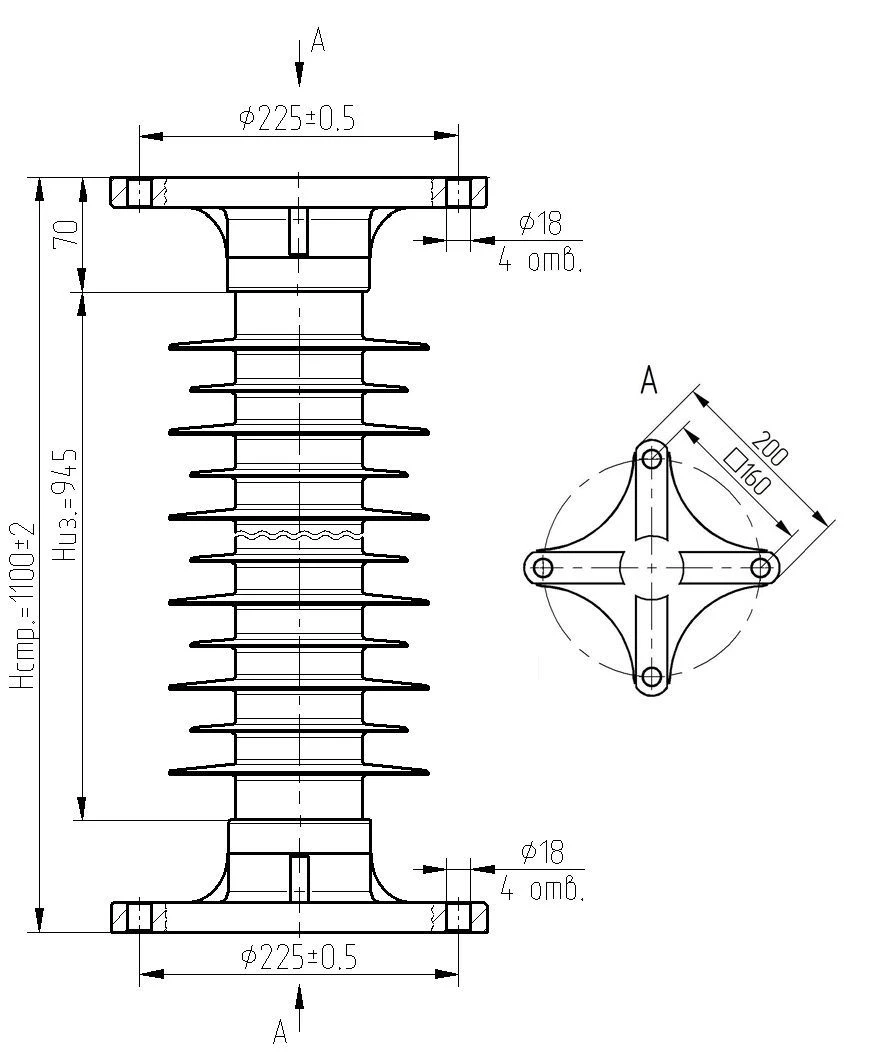

Building height
1100 mm
Leakage path length
3000 mm
Rated operating voltage
110 kV
Mechanical bending crushing force, kN
10
