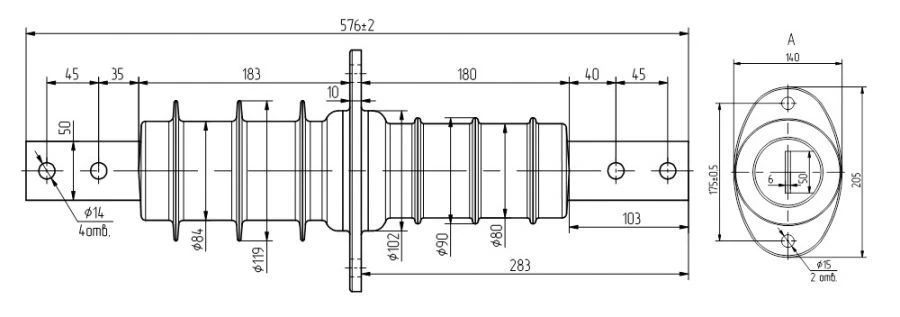

Polymer bushing insulator IPP-10-630-7,5-B UHL1
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Insulators through polymer are designed to conduct and connect current-carrying elements in electrical apparatus and switchgear of electrical stations and substations of alternating voltage at 10 kV frequency up to 100 Hz. Climatic design of the insulator is UHL, placement category 1 according to GOST 15150. The upper value of ambient air temperature should not exceed 65C when installed in complete switchgears and 80C when installed in closed current conduits.
Specifications
Leakage path length
350 mm
Building height
620 mm
Rated operating voltage
10 kV
Rated current, A
630 A
Mechanical bending crushing force, kN
7.5
Insulator weight, not more
6 kg
