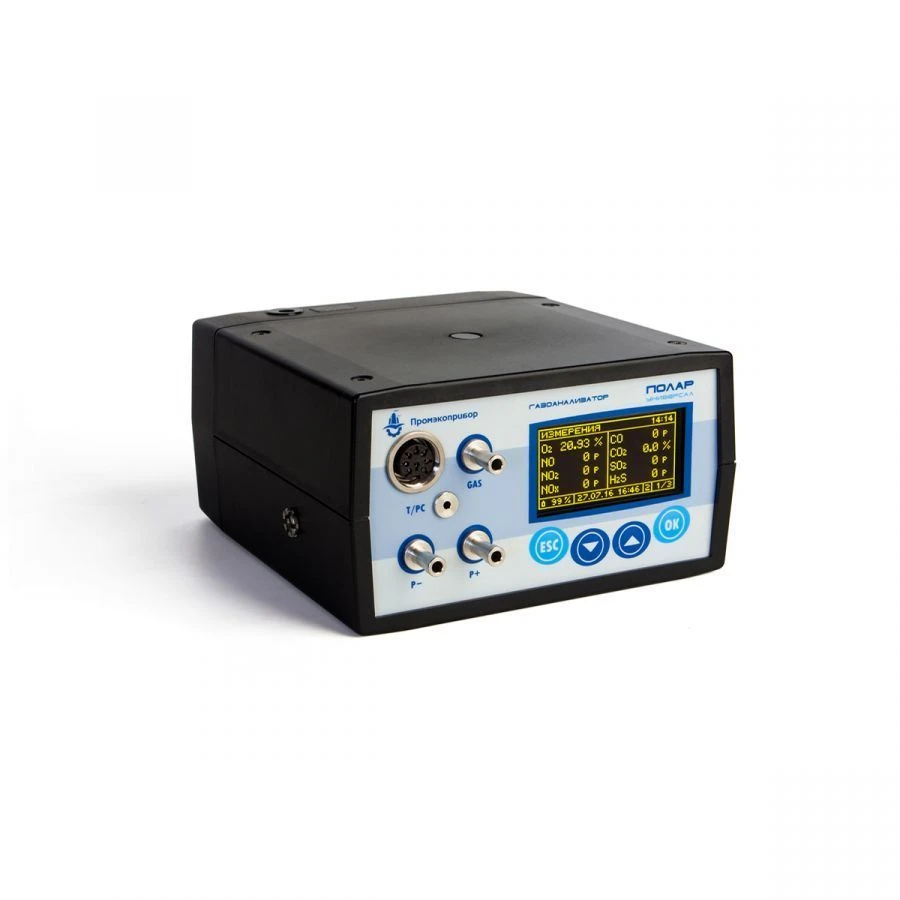

Polar multicomponent gas analysers, Polar Universal model, Polar Universal Ex T modification

Gas and Smoke Analysers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Polar multicomponent gas analysers, Polar Universal models, Polar Universal modifications Polar multicomponent gas analysers, Polar Universal model, Polar Universal T modification Polar multicomponent gas analysers, Polar Universal model, Polar Universal Ex modification

Description

Multicomponent gas analysers are automatic portable instruments of continuous operation. The field of application of gas analysers is the control of industrial emissions. The principle of operation of gas analysers: - on measurement channels of O2, CO, NO, NO2, SO2, H2S, NH3 - electrochemical; - on measurement channels of CO (0-15 %), CO2 and CH - optical infrared; - on measurement channel of gas flow temperature - thermoelectric; - on measurement channels of differential pressure - tensoresistive transducer. Structurally, the gas analysers are single-unit devices made in durable plastic cases. In addition to the gas analyser itself, the devices include devices for sample collection and preparation for analysis.
A distinctive feature is the possibility to install two measuring channels of CO, NO and SO2 for each of the components.

Specifications

Weight 1.8...5.8 kg

Controlled gas Oxygen (O2), carbon monoxide (CO), carbon dioxide (CO2), nitrogen oxide (NO), nitrogen dioxide (NO2), sulfur dioxide (SO2), hydrogen sulfide (H2S), ammonia (NH3), methane (CH4), propane (C3H8), hexane (C6H14).

Type Gas temperature measurement channel, gas pressure difference measurement channel, gas overpressure (rarefaction) measurement channel.

Equipment Probe handle complete with sample hose, probe tube, moisture separator, external sample cleaner, battery charger

Housing material Plastic

Operating temperature range -40...45 °C

Power supply voltage 8.4 V

Degree of protection IP20

Size 149x164x80 mm
