Pneumatic vacuum gate valve ?????-200

Pipeline Control Valves

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Pneumatic vacuum gate valve ZVpP-100 Pneumatic vacuum gate valve ?????-320 Pneumatic vacuum gate valve ?????-160 Pneumatic vacuum gate valve ?????-250

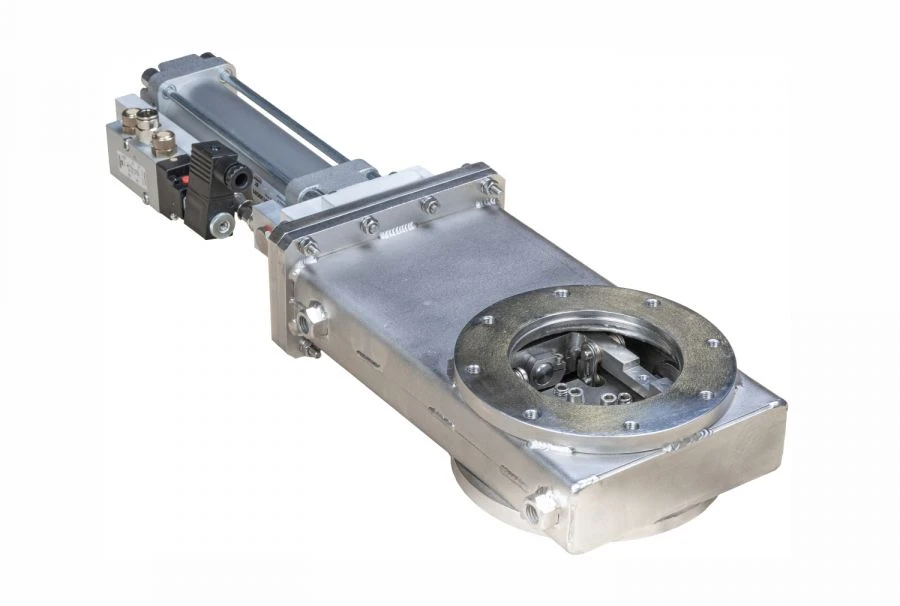

Pneumatic vacuum gate valve ZVpP-200 with a nominal bore of 200 mm is designed for shutting off vacuum systems in the pressure range from 1x10 -6 to 1,07x10 5 Pa. It is manufactured in climatic version UHL4 according to GOST 15150-69. Working environment - air and non-aggressive gases. The temperature of the working environment is from +1 0C to +40 0C. Pneumatic vacuum gate valve ZVpPP-200 is not intended for use in fire-explosive production facilities.

Technical Specifications

Conductivity (theoretical) in molecular mode, m3/s, not less than	9.7
Tightness norm, l-Pa/s, not more than	5.6x10 -4 l-Pa/c
Time of opening (closing) of the gate from the pneumatic actuator, s, not more	7
Operating pressure range, Pa	1x10 -6 to 1.07x10 5
Pressure difference in closed position on either side of the flap, Pa, not more than	1,07?10 5
Permissible pressure difference at flap opening, Pa, not more than	1,3?10 3
Overall dimensions, mm, not more	900x253x318 mm
Weight, kg, not more	40 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
