PLC series control module

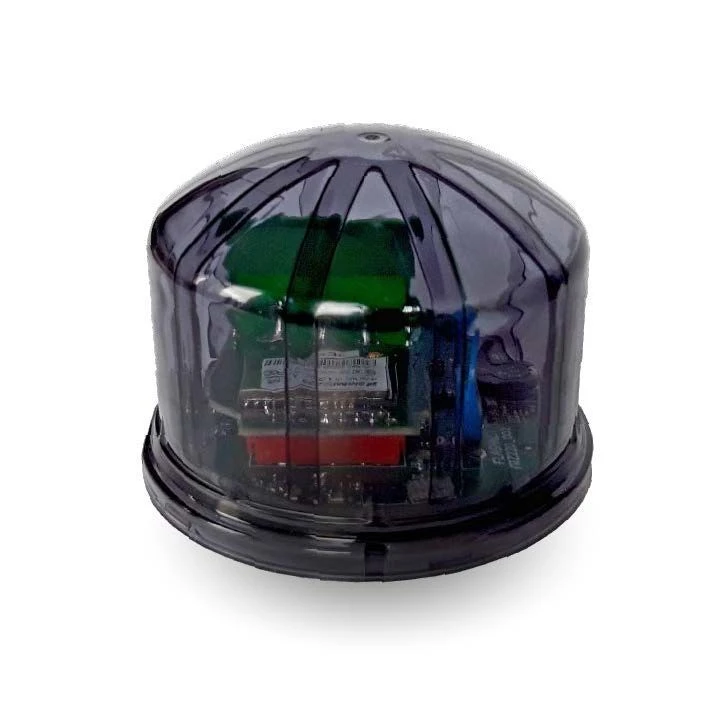

Module for installation in the luminaire or (in ZHAGA/NEMA housing) on the luminaire via a special connector, allows to control the operation of lighting equipment, supports communication with the PLC expansion module. Functionality On/Off, dimming, transfer of equipment operation status,
-Support for connection to the universal control controller of the control room via PLC channel,
-Control of LED luminaire drivers via DALI/DALI 2.0 protocol with the ability to change the luminaire brightness from 0 to 100%,
-Transmission of diagnostic and other information about the state of the subsystem and connected equipment;
-The possibility of remote updating of the subsystem firmware; Characteristics of the PLC interface:
-Data transmission standard - compatible with G3-PLC,
-regional frequency range - CENELEC A, B,
-types of modulation of the transmitted signal - OFDM (BPSK, QPSK,
-8PSK),
-data transmission speed - up to 48 kbit/s.
