Available for Import

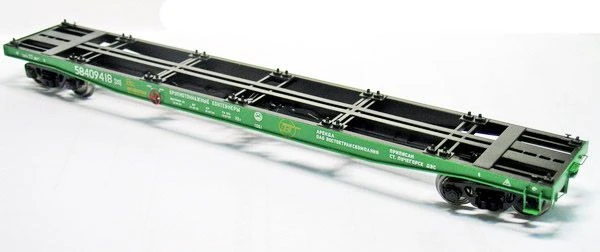

Platform for carriage of large-capacity containers model 13-9751-01 project 4520-06.00.00.000
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
- one or two containers of size 1AAA, 1AAA, 1A, 1A, 1AX according to GOST R 53350;
- one container of size 1AAA, 1AA, 1A, 1A, 1AX and two containers of size 1SS, 1S, 1SX according to GOST R 53350;
- one, two, three or four containers of size 1CC, 1C, 1CX according to GOST R 53350.
It is allowed to transport large-capacity refrigerated containers of size 1A, 1AX, 1AA, 1C, 1CC, 1SS according to GOST R 53350 when installing on the platform of additional multi-turn detachable equipment with the development and approval in the prescribed manner MTU.
Technical Specifications
| Type of product according to PP RF 616 | Railroad type flat cars |
|---|---|
| Type | Platform |
| Wheel set axle load on track | 23.5 t |
| Assigned service life until the first scheduled (depot) repair | 3 a |
| Assigned service life until first overhaul | 32 a |
| Assigned service life | 32 a |
| Number of hinged fitting stops | 16 pc |
| Number of fixed fitting stops | 4 pc |
| Design speed | 120 |
| Dimension according to GOST 9238 | 1-wm pc |
| Track width | 1520 mm |
| Dimensions of loading area width | 2800 mm |
| Dimensions of loading area length | 24830 mm |
| Width along frame side beams | 2800 mm |
| Maximum frame width | 3000 mm |
| Wagon length at frame frontal beams | 24160 mm |
| Wagon length at frame end points | 24830 mm |
| Length along the coupling axes of couplers | 25380 mm |
| Base | 19000 mm |
| Tare weight | 25 t |
| Payload | 69 t |
| Height from the UHGR to the horizontal axis of the coupler | 1060 mm |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
Shipping & Payment Information
Shipping Terms
- FOB: Novorossiysk, Russia
- CIF: Available to major ports worldwide
- EXW: Manufacturer's facility, Russia
Delivery Time
- Sea freight: 30-60 days (depending on destination)
- Air freight: 14-21 days (for urgent orders)
- Production lead time: 30-90 days (depending on order size)
Payment Methods
- Letter of Credit (L/C)
- Wire Transfer (T/T)
- Escrow Services
Order Minimums
- We work with orders starting from 1 container
- You can mix different products in one container
- Volume discounts available for larger orders
Customs & Documentation Support
We provide comprehensive assistance with all export documentation, customs clearance, and logistics arrangements. Our team has extensive experience facilitating international trade with businesses in Africa, Middle East, Asia, and Latin America.
Contact Our Import Specialists
WhatsApp (Recommended)
For fastest response and immediate assistance with pricing, availability, and ordering.
+971 58 657 4796For detailed inquiries, documentation requests, and formal communications.
Send Email Inquiry info@tonzar.comRequest Call Back
Schedule a consultation with our import specialists at your convenience.
Business Hours
We're available to assist you during the following hours:
- Monday - Friday: 9:00 AM - 6:00 PM (GMT+4)
- Saturday: 10:00 AM - 2:00 PM (GMT+4)
- Sunday: Closed
Our WhatsApp support is available outside business hours for urgent inquiries.
