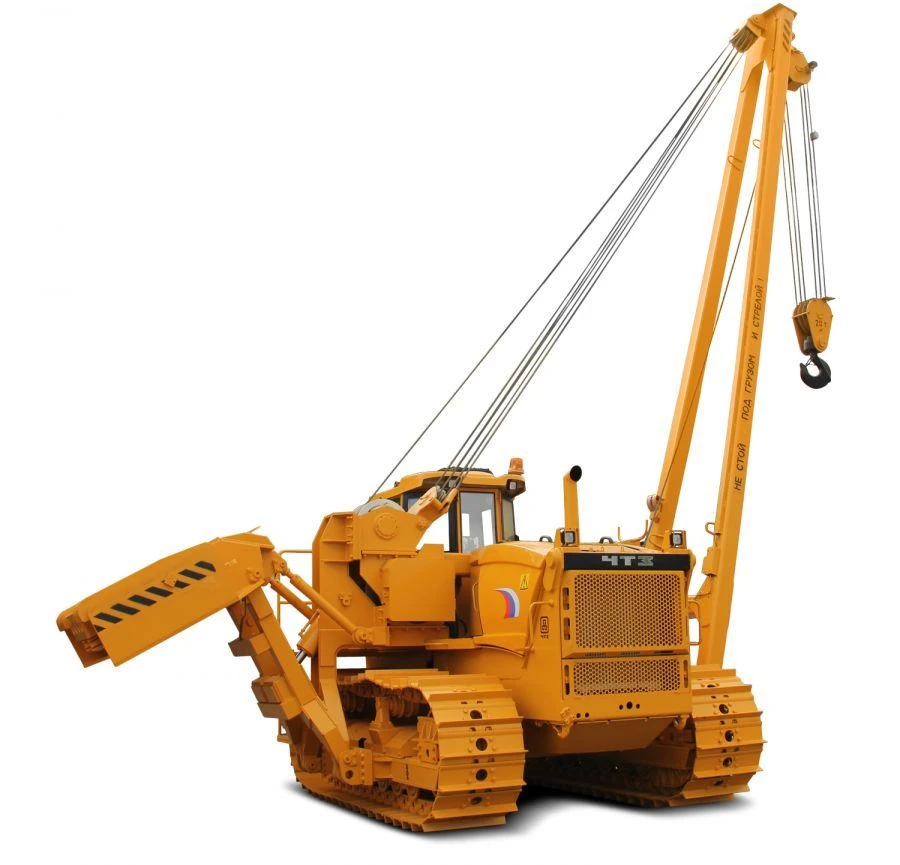

Pipelayer TR20B

Crawler Pipelayer Cranes

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Designed for transporting and laying pipelines up to 1020 mm in diameter in the trench, accompanying cleaning and insulation machines, performing various lifting and transporting works on soils of ordinary and with reduced bearing capacity.
It is equipped with safety devices complying with the current standards.

Specifications

Type of product according to PP RF 616 Pipelayer cranes

Power 230 hp

Weight 32000 kg

Lifting capacity at 2.5 metre arm. 20000 kg

Base tractor ?11

Engine yamz 236b

Engine operating power 158 kW

Rated load capacity 20 t

Maximum load on the hook NZ-150-14,5 t

Maximum hook lifting height 7.7 m

Maximum hook outreach 8.5 m

Estimated maximum tractive effort on drive wheels 22 t

Fuel tank capacity 300 l

winch with planetary gearbox and hydraulic actuator

Drive Hydraulic

Counterweight Remote

Boom length 9 m

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
