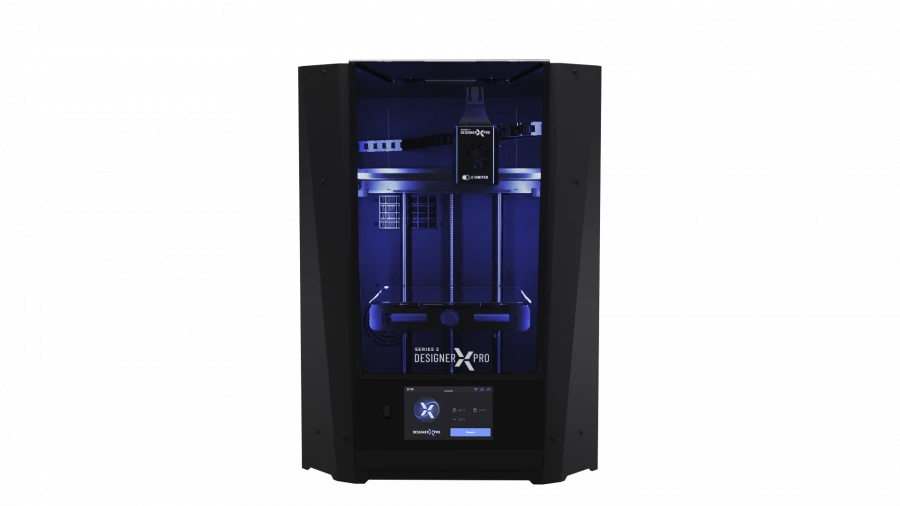

PICASO 3D Designer X PRO S2 3D Printer

Material Extrusion 3D Printers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Designer X PRO S2 is the flagship 3D printer from Russian company PICASO 3D. The device is equipped with two nozzles working with JetSwitch technology. The printing area is 201x201x210 mm and the printing speed is up to 150 cm3/hour. The range of consumables includes any thermoplastics, up to the melting point of 430 degrees. Implementation of this tool allows to reduce the time of implementation of new developments by times and to save money considerably. The main competitive advantage is the X platform control systems implemented in the device. The systems of profiles, control of the first layer, plastic feeding are for the first time applied in the segment of desktop professional equipment by PICASO 3D. The presence of sensors and systems of control over the printer's operation allows to minimise the percentage of "defective" printing and achieve a quality that was previously unavailable for desktop 3D printers.

Technical Specifications

Type of printer control	Control panel with colour touch screen display on the printer body
Availability of autodiagnostic system	Armoured glass
Availability of plastic feeding control system	Armoured glass
Presence of visual warning system	Armoured glass
Presence of layer time control system	Armoured glass
Availability of printing surface control system	Armoured glass
Availability of heat sink temperature control system	Armoured glass
Type of print platform	Heated removable, fixed on the platform
Cooling of the print area	Bilateral
Availability of the function to continue printing after a power failure	Armoured glass
Built-in drying mode function	Armoured glass
Availability of a print platform control system	Armoured glass
Availability of a system for controlling the presence of plastic	Armoured glass
Database of material profiles	More than 70 profiles available
File types	*.plgx
Maximum working platform temperature	150 °C
Minimum layer thickness	10 microns (0.01 mm)
Travelling speed of the print head	Up to 150 mm
Number of print heads	1 pc
Autolevelling	Z-axis autolevelling
Auto-tracking	Nozzle auto-tracking X - Y
Nozzle inversion	Selection of active nozzle
Continuation of printing with the second nozzle	Hot-swap mode
Active heated chamber	80 °C
Number of materials to be loaded simultaneously into the extruder	2 pc
Diameter of the plastic bar to be loaded	1.75 mm
Maximum extruder operating temperature	430 °C
Printing area	201x201x210 mm
Printing technology	FFF (Fused Filament Fabrication)
Supported materials	PA (6/12)
Software	PICASO 3D Polygon X™

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
