Available for Import
Phase modulator
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

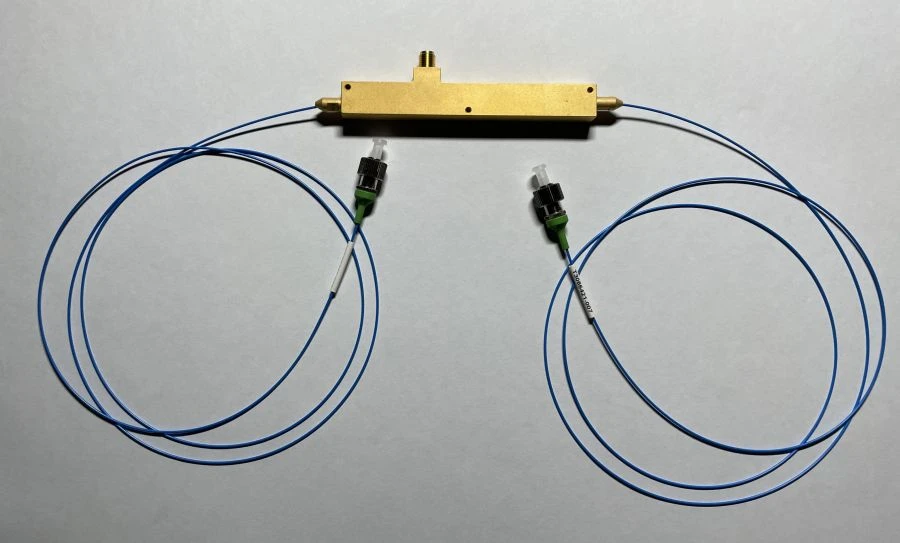

Phase modulator GRTB.434833.001
Functional purpose: provision of phase modulation of narrowband, linear-polarised coherent electromagnetic radiation in the wavelength range from 1530 to 1565 nm.
List of functions: phase modulation of optical signal with wavelength (1550±20) nm by external electrical control signal.
Field of application: photonic technologies, laser communication and data recording technologies, telecommunication systems and technologies, scientific research, laser and photonic instrumentation.
Reliability indicators:
-Average MTBF 250,000 hours, not less.
-Average recovery time not more than 25 minutes.
-Average service life of 12 years, not less.
Functional purpose: provision of phase modulation of narrowband, linear-polarised coherent electromagnetic radiation in the wavelength range from 1530 to 1565 nm.
List of functions: phase modulation of optical signal with wavelength (1550±20) nm by external electrical control signal.
Field of application: photonic technologies, laser communication and data recording technologies, telecommunication systems and technologies, scientific research, laser and photonic instrumentation.
Reliability indicators:
-Average MTBF 250,000 hours, not less.
-Average recovery time not more than 25 minutes.
-Average service life of 12 years, not less.
Specifications
Type of rear door(s)
no
Width
24 mm
Length
112 mm
Weight
0.06 kg
Height
10 mm
Number of optical ports
2 pc
Type of optical ports
FC/APC
Operating temperature range
10...40 °C
Device type
no
Cable type
no
Connector
no
Type of accommodation
no
Availability of fasteners to the support (pole)
no
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
