Available for Import

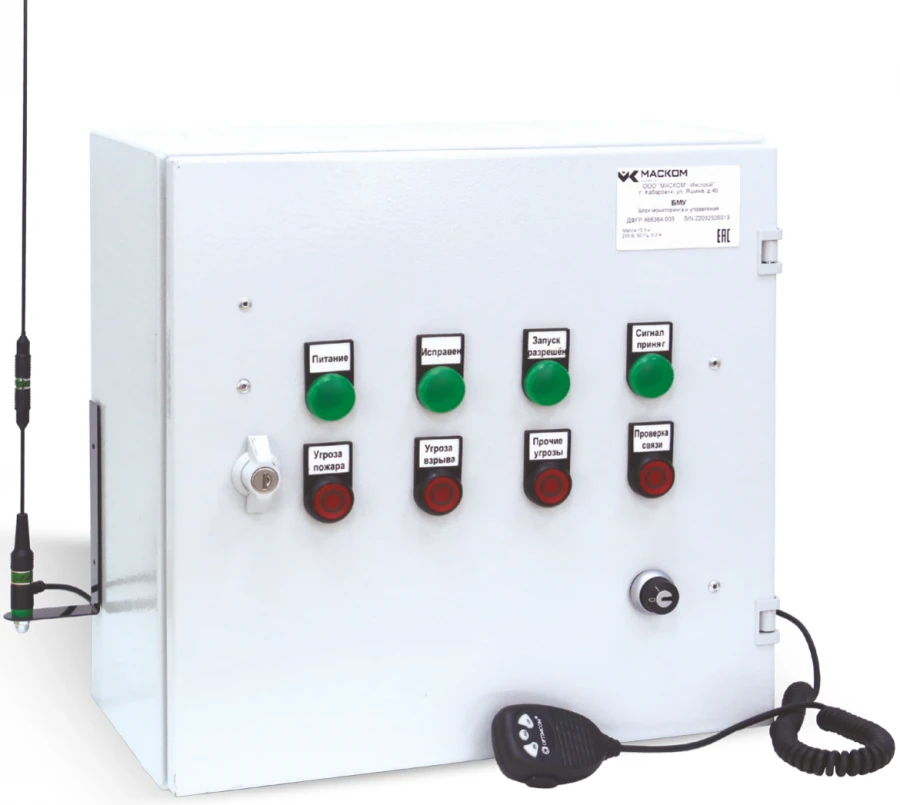

PGM BMU. Monitoring and control unit
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
-information from monitoring systems of potentially dangerous objects,
-signals of emergency situations from responsible persons of rural settlements and potentially hazardous facilities;
- to launch local warning systems for rural settlements and potentially hazardous facilities.
By means of the BZO-AC, prescribed in the software, the PMU enables direct audio broadcasting of messages dictated by the operator.
From the control centre it is possible to start the notification device connected to the PMU.
Communication between the PMU and the control centre is carried out via Ethernet.
A mechanical switch with a key is used to activate the PMU.
The product operates under the control of specialised software (SPO) based on free software.
Technical Specifications
| Connection interface | Ethernet, GSM |
|---|---|
| Control device | Start-M1 controller developed and manufactured by MASCOM-Instroy LLC |
| Internal slots and connectors | terminal connections |
| Enclosure design (form factor) | Electrical installation cabinet 400 x 400 x 210 mm |
| Maximum power consumption, VA | 46 |
| Execution | For mounting on a smooth vertical surface |
| Degree of protection of the shell | IP65 |
| Weight (without batteries) | 15.5 kg |
| Power supply voltage | 230 V |
| Power consumed in standby mode (without battery charging) | 10 |
| Power consumed in standby mode (when the batteries are charged) | 18 |
| Feeder line parameters for internal equipment | 24V, 2,25A |
| Number of digital inputs | 2 pc |
| Number of discrete outputs | 2 pc |
| Speech information input device | Remote microphone unit with tangent |
| MTBF | 30000 |
| Service life before decommissioning | B1/B8 2100/900 MHz a |
| Preservation of serviceability in case of centralised power supply failure (in standby mode) | 6 |
| Maintaining serviceability in case of centralised power supply failure (in alert mode) | 1 |
| Ambient temperature (without heater) | 0...50 °C |
| Ambient temperature (with heating device) | -50...50 °C |
| Permissible relative humidity | 80 % |
| Depth | 245 mm |
| Width | 400 mm |
| Height | 460 mm |
| Removable storage device | SSD with SATA (M2) or NVME (M2) interface |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
