Personnel and transport registration device URPT-485.5.20 (reader with access card registration function)

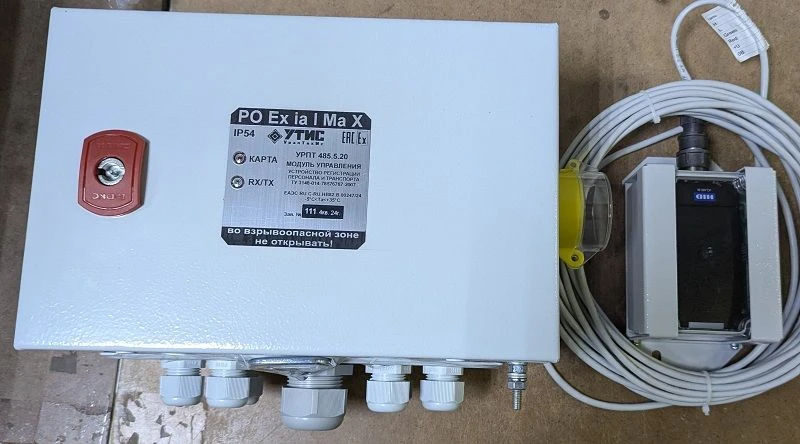

URPT-485.5.20 allows contactless reading of passive access card numbers.URPT-485.5.20 - URPT with the function of access card registration, is designed to organise access control to the object and transfer registered tag numbers and time of their registration on request to the data collection server. The control module is made in a metal protective case, in which the board is installed, providing data collection and processing from connected card registration devices, sensors of access control elements status, data analysis and issuing control actions on locking elements, as well as data transmission to the central server via Modbus RTU protocol RS-485 interface. On the right side of the protective case there is a button for emergency opening of the electromagnetic door lock.Readers URPT-485.5.20 are installed near the doors (turnstiles) to board the cage, at the entrance to areas of underground workings with limited access, in front of automatic doors of lock chambers.
