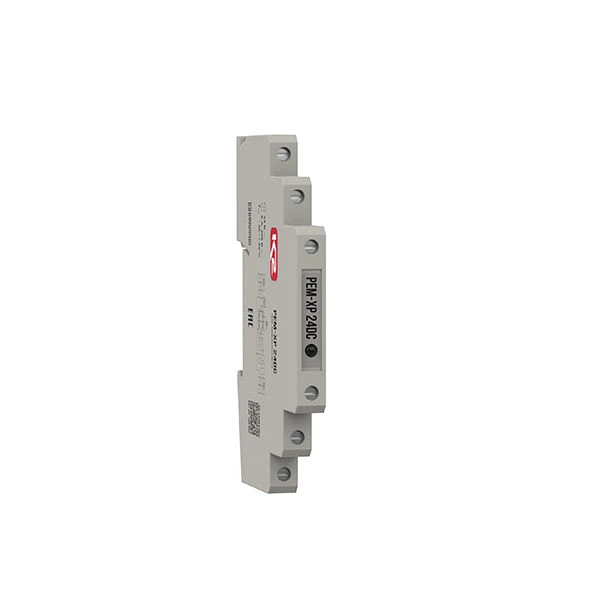

PEM-XR 24DC relay module, Cat.No.706 002

Electromagnetic Relays

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Relay module REM-XR 230AC, cat.no.706 003

Description

Relay module REM-XR 24DC, RBNM.647611.001TU is a switching relay with protection of the control winding and LED indication of the presence of control voltage (switched state). The input and outputs of the module are galvanically isolated. The module allows switching at a maximum switching circuit voltage of 250 V AC/DC. The maximum continuous load current is not less than 6 A. Rated control voltage is 24 V DC. The device is made in a plastic housing of protection class IP20. The device is mounted on a 35 mm DIN-rail by means of a special latch on the rear side of the case.

Specifications

Method of attachment DIN 35 mm rail lock

Rated DC control voltage 24 V

Operating temperature range -40 °C

Response time 0.005

Number of contacts 1 pc

Size 91;7,5;64

Weight 0.04 kg
