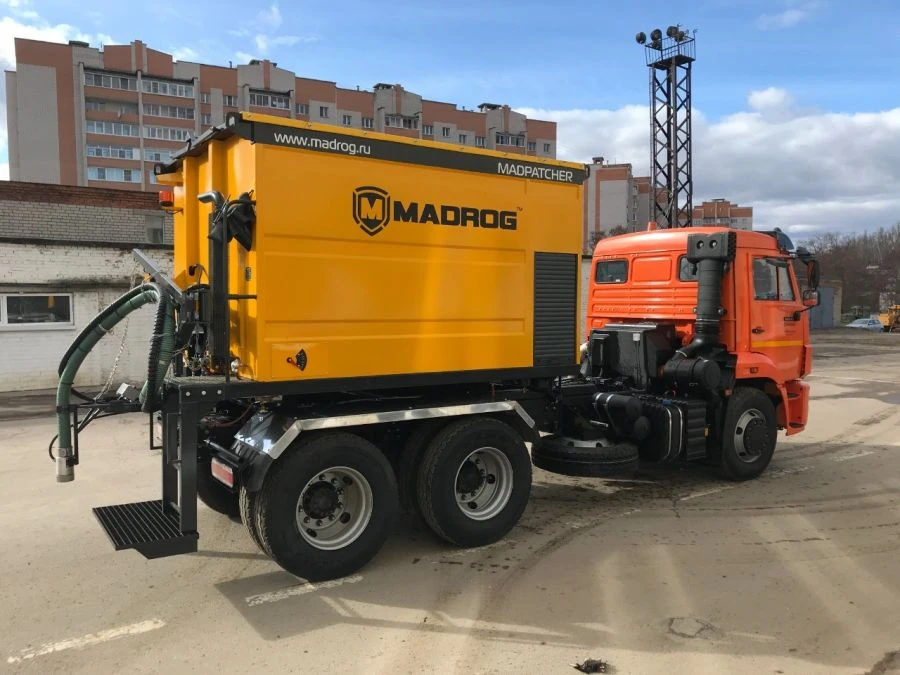

Patching machine (pneumatic spraying method) Madpatcher mounted on chassis/in the body of a dump truck.

Municipal Road Vehicles

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Applied on urban roads and motorways. The jet-injection method has proven itself over many years worldwide.

Technical Specifications

Emulsion tank volume	1300 l
Base machine type	Motor vehicle (chassis)
Engine type	Diesel
Emulsion heating type	Gas
Crushed stone hopper capacity	4...7
Emulsion tank volume	1300 l
Availability of air conditioning system	availability
Availability of heater	availability
Type of product according to PP RF 616	Vehicles for public utilities and road maintenance
Type of product according to PP RF 616	Vehicles for public utilities and road maintenance
Engine type	Diesel
Type of equipment of the combined road machine	Patching by pneumatic spraying method
Base chassis type	Vehicle chassis/tipper body
Purpose	Road patching by jet-injection method with a mixture of crushed stone and bitumen emulsion.
Maximum capacity of ready-mix equipment per hour	2
Length dimensions	4250 mm
Width dimensions	2290 mm
Height dimensions	2100 mm
Weight	3200 kg
Type of autonomous motor	Diesel
Cooling of the autonomous motor	Liquid
Number of cylinders of autonomous diesel engine	4 pc
Autonomous motor power	25...40 hp
Fuel tank capacity of the self-contained engine	40 l
Computer control of the autonomous engine	availability
Location of the fuel filler neck on the fuel tank of the self-contained engine	Rear (on the operator boom side)
Blower drive	Two V-belts from the engine
Adjusting the emulsion flow rate of the feed pump	stepless
The following processes can be electronically controlled from the operator panel	Emulsion pump on/off, emulsion pump capacity adjustment, internal combustion engine speed adjustment, auger speed adjustment, auger stop, engine economy mode on, audible alarm
Placement of the operator panel	On the boom
Raising and lowering the operator boom	??????????????
Positioning of the operator boom	rear
Boom swing angle	240
Feed hose length	4 m
Feed hose diameter	80 mm
Sleeve material	Reinforced PVC plastic
Number of crushed stone hopper compartments	1 pc
Crushed stone hopper compartment volume	6.5
Crushed stone hopper awning	availability
Enclosed compartment for transportation and storage of equipment	availability
Emulsion tank insulation	mineral wool
Emulsion level indicator	availability
Emulsion tank filler neck location	Rear (on the operator boom side)
Gas burner for initial heating of emulsion	availability
Heat exchanger for permanent emulsion heating, utilizing heat from the engine coolant while the engine is running	availability
Tank capacity for flushing and preserving the emulsion system	40 l
Location of the tank filling neck of the emulsion supply cleaning system	Rear (on the operator boom side)
Number of augers metering crushed stone	1 pc
Screw drive	Hydraulic
Screw speed adjustment	stepless
Operating instructions and spare parts catalog in Russian in hard copy and electronic format	availability
Mounting kit for the installation of a patching machine	Subframe; plates against lateral displacement, not less than 2 pcs.; ladders for fastening in assembly, not less than 6 pcs.
Type	Patching by pneumatic spraying method
Machine type	Dump truck, chassis

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
