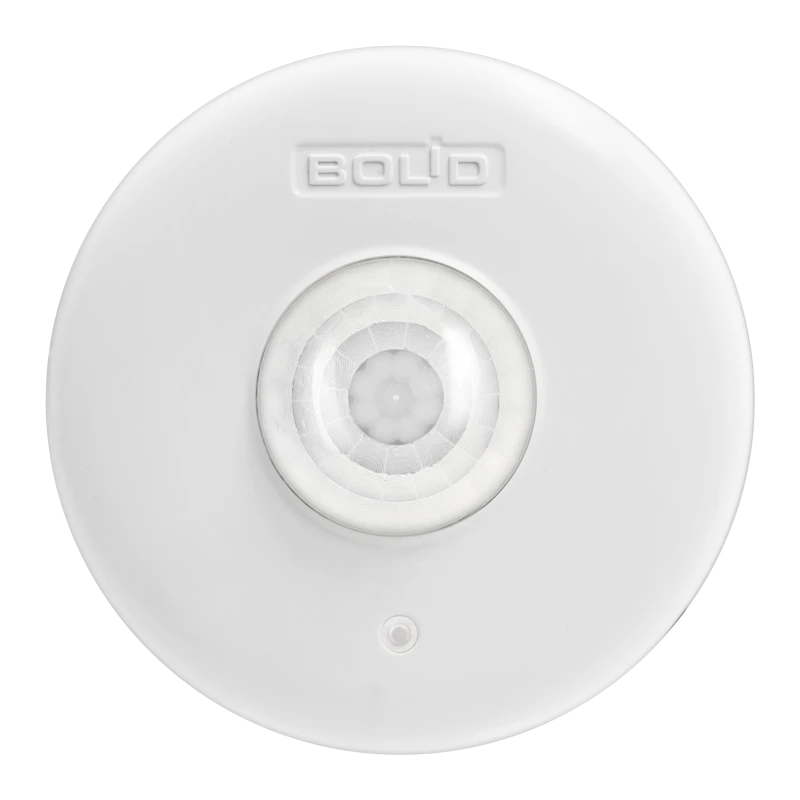

Passive optical-electronic infrared addressable intrusion detector with volumetric detection zone ceiling mounted "Grazia esp.02

Intrusion and Fire Detectors

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Designed for detection of intrusion (attempted intrusion) into the protected space of a closed room by infrared radiation analysis. The detector transmits the alarm state by opening the relay contacts. The detector transmits the tamper status by opening the tamper contacts.

Technical Specifications

Supply voltage (DC)	10...30 V
Average current consumption in "Normal" mode	Not more than 2,3 mA
Average current consumption in "Alarm" mode	max 3.5 mA
Maximum current through relay contacts	100 mA
Maximum voltage on relay contacts	30 V
Maximum current through tamper contacts	100 mA
Maximum voltage on tamper contacts	30 V
Diameter of detection area (at height 2.5m / 3.6m)	12 / 12 ?
Detection speed range	0,3...3 metres/second
Resistance to ambient light	not less than 6500 lx
Protection degree of the shell according to GOST 14254-2015	IP41
Operating temperature range	-30 to +40 °C
Overall dimensions of the device (H x W)	38x90 mm
Instrument weight	0.1 kg
Average lifetime of the device	8 a

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
