Available for Import

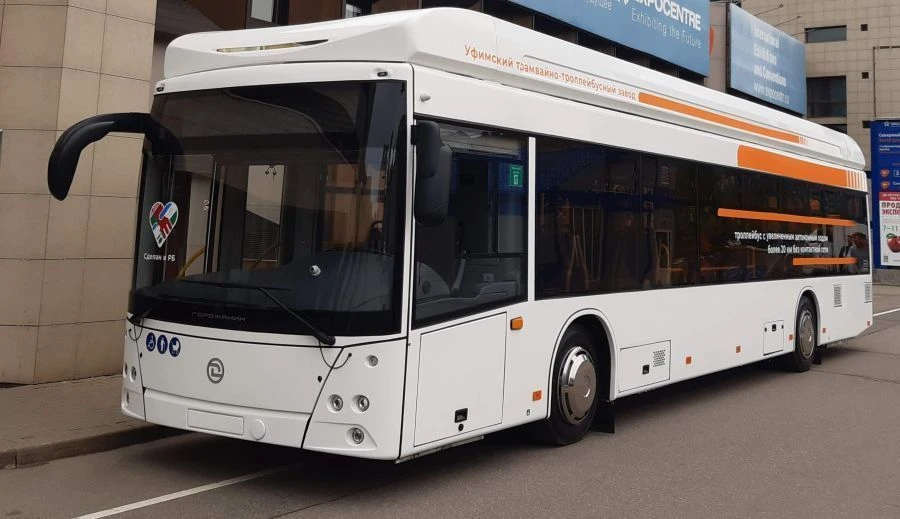

Passenger trolleybus, UTTZ brand, type 6241, modification 6241.01, commercial name Gorozhanin, low-floor (categories)

Electric Trolleybuses

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Passenger trolleybus, brand UTTZ, type 6241, modification 6241.01, commercial name Gorozhanin, low-floor (category M3/I class) with increased autonomous travel, manufactured according to TU 29.10.30.120 -001 - 32051163 - 2017

Specifications

Category ?3

Availability of seats for disabled passengers, including those in wheelchairs Armoured glass

Possibility of autonomous travel Armoured glass

Design speed 80 pc

Availability of passenger compartment climate control system Armoured glass

Passenger capacity 90...94

Floor type low-floor

Vehicle category 29.10.30.120

Type of product according to PP RF 616 Buses, trolleybuses

Service life 10 (ten) years or mileage 600,000 (six hundred thousand) km.

GLONASS satellite navigation system in accordance with the requirements of the Government Decree No. 153 of 13.02.2018 established

Brake systems pneumatic, double-circuit, first circuit - front axle wheels, second circuit - rear axle wheels, with ABS, all wheels disc brakes.

Rear suspension Dependent, pneumatic, four-poster, with two lower reaction rods mounted V-shaped and two upper longitudinal reaction rods, with four telescopic shock absorbers and two body position controllers.

Front suspension dependent, pneumatic, double-braced, with two longitudinal reaction rods and two V-shaped rods, with two telescopic shock absorbers and one body position regulator; or independent, pneumatic, double-braced, with two longitudinal reaction rods and two V-sha

Driver's workplace There is a sunshade on the windscreen opposite the driver; the driver's seat is soft, with a seat belt, adjustable in height, backrest tilt, horizontal movement of the seat cushion.

Driver's cabin Driver's compartment is separated from the passenger compartment by a solid partition up to the ceiling, fitted with windows and a door, equipped with a frontal heater of calorifier type for blowing the windscreen with a power of at least 5 kW and an addit

Fire safety requirements Trolleybus complete with automatic fire extinguishing system.

Doors Three double-leaf hinged pivot-type doors on the right-hand side panel.

Passenger compartment heating system electric heaters of calorifer type; total power not less than 14 kW.

Boom catchers Pneumatic; mechanical

compressor piston or screw cylinder

Engine with external blowing; closed; traction asynchronous

Number of seats 31...34 pc

Leakage current monitoring system Isolation control system operating in automatic mode when the trolleybus is switched on.

Gross weight 18000 kg

Height 3700 mm

Width 2550 mm

Length 12600 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
