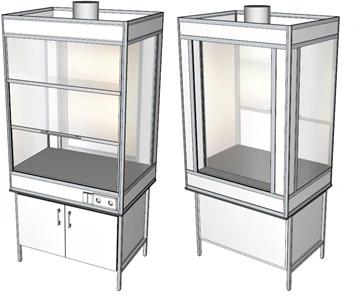

Panoramic demonstration fume cupboard SHVD-1

Working box: table top, working surface - plastic, resistant to concentrated acids, alkalis, organic solvents. Plumbing - optional. Frame - aluminium profile with a cross-section of at least 27x27mm. Side walls, front part, back wall - 5 mm thick tempered glass. Lifting screen with the possibility of fixation at any height - material tempered glass 5 mm thick, lifting 0-520mm; counterweights are placed in the side racks; Possibility of placing the lifting screen both from the front and rear side of the cabinet, at the customer's choice. one level of exhaust; PVZ lamp - IP65, flange in the roof - d=200mm. Support cabinet: body - 16mm thick chipboard; 2 compartments, 2 doors with lock, 2 removable shelves; double switch - 1 pc; automatic circuit breaker 16A - 1 pc; splash-proof sockets with cover (IP20 3,2kW) - 2 pcs; all-welded frame made of metal profile 25x25, powder painted RAL 1001; adjustable supports.
