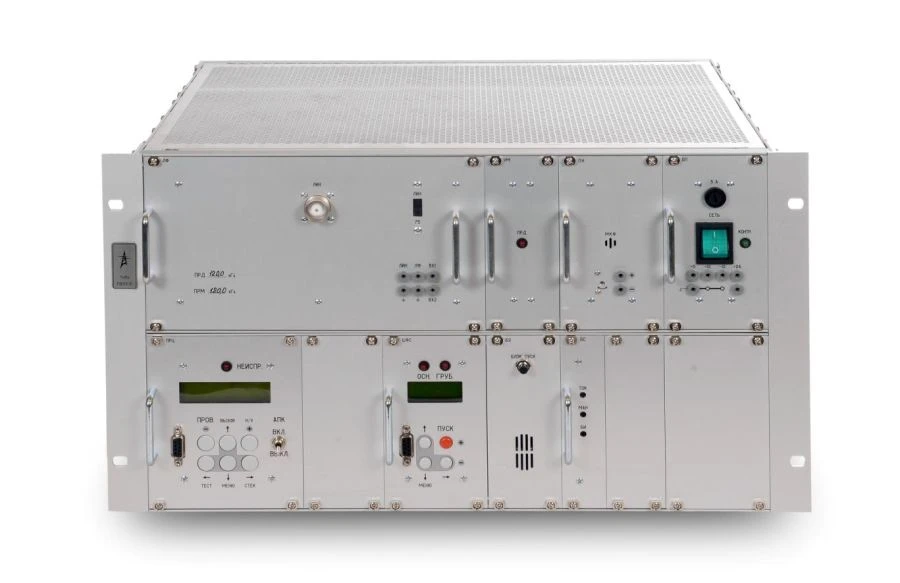

PAK Universal high-frequency protection transceiver PVZU-E

Communication Devices Hub

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The device is designed for transmission and reception of relay protection signals: via high-frequency (HF) communication channel formed by wires of overhead power lines with voltage of 35-750 kV and via fibre-optic communication channel (via dedicated FOCL). Additional functions: Continuous control of equipment serviceability and periodic monitoring of the communication channel state; Recording in non-volatile memory of data on the apparatus operation during start-up of the protection system, as well as alarm events; Data transmission (OMP); Communication in intercom mode; Information exchange with the ACS server according to GOST R IEC 60870-5-101, GOST R IEC 60870-5-104 protocol; Indication of the level of useful RF signal and/or interference signal in the RZ filter band; Indication of the level of transmitted RF signal

Technical Specifications

Climatic execution according to GOST 15150-69	UHL4
Rated level of receiver sensitivity, not more, dBm	-15
Attenuation of inconsistency in the receiving band, not less than	B1/B8 2100/900 MHz
The nominal resistance of the PVZU-E line input at the receiving frequency when the transmitter is not running is as follows	75 ohm
Residual signal voltage at the output of non-started transmitter, not more than, mV	10
RF power in the frequency range 600 - 1000 kHz	15 W
RF oscillation power in the frequency range 400 - 600 kHz	20 W
HF oscillation power, on 75 Ohm load in the frequency range 16 - 400 kHz	27 W

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
