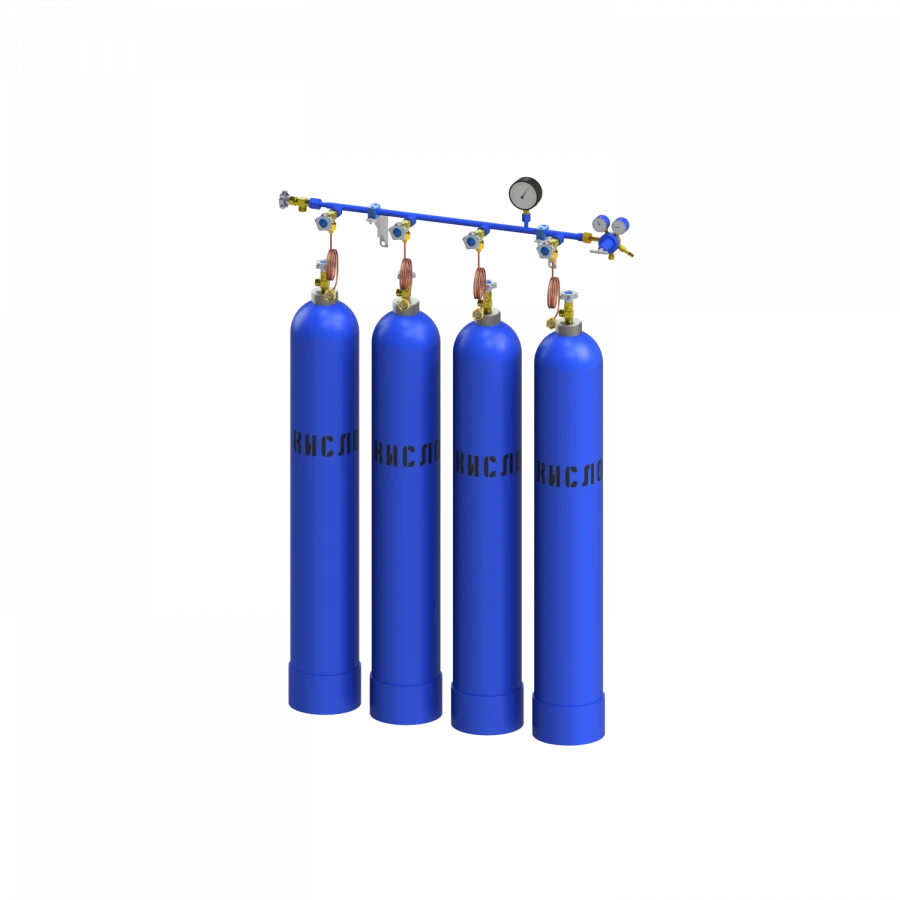

Oxygen Discharge Ramp for Four Cylinders RPK-4 - High Pressure Distribution System

Gas Handling Equipment

Manufacturer: SPTG LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Oxygen discharge ramp for four cylinders ???-4 is a high-pressure pipeline with shut-off, measuring and regulating valves installed on it. The ramp is designed for centralised supply of oxygen (including medical oxygen) from cylinders to consumers. Additionally, the ramp can be equipped with: a rack with chains for fixing cylinders, a cabinet for protection from atmospheric precipitation, a container for easy movement, a single frame for placement on the wall, automation system of operating modes, signalling system to the operator's console and any other solutions according to the customer's specifications.

Specifications

Climatic version

UHL2

Highest inlet gas pressure

20 MPa

Highest operating gas pressure at the reducer outlet

0...15 MPa

Collector material

Brass MPa

Material of shut-off valves

Brass

Safety relief valve actuation pressures

0...15 MPa

Possibility to install additional equipment

Armoured glass
