Available for Import

Outdoor telecommunication cabinet ???-?-8U-600?400?350-??-ttk

Telecom Equipment Components

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

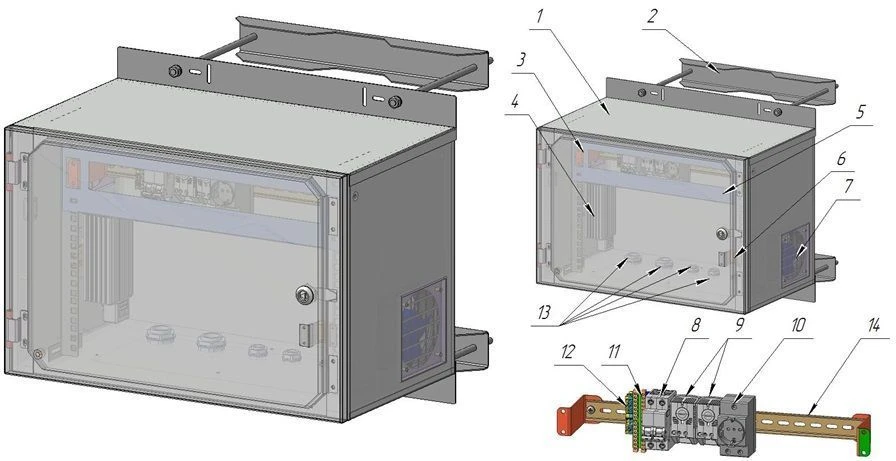

???-?-8U-600?400?350-??-ttk. Outdoor telecoms cabinet for placement of telecoms equipment with the possibility of mounting on the wall or to a street pole (support). IP 55 enclosure with mounting plate. Usable height 8U. The cabinet is designed to install the following equipment: circuit breaker 16A 2P = 1 pc, socket 220 V on DIN rail = 1 pc. Bus PE, N = 2 pcs. thermostat NO, NC = 2 pcs. heater 220 V, 60 W = 1 pc. Overall dimensions ?????? mm = 400?400?250. The product is an all-weather outdoor vandal-proof telecommunication cabinet designed for telecommunication equipment placement in moderate climate conditions with ambient air temperature from - 40°C to +50°C. The external structural elements of the cabinet are made of high-strength steel 1.5 mm thick and have a protective anti-corrosion epoxy powder coating with pre-phosphatised surfaces.
On the walls and door of the cabinet are elements of the grounding circuit.

Technical Specifications

Resistance to mechanical external influencing factors (EIF)	according to gost 17516.1-90 (IEC 721-3-3-87) - m42
Resistance to mechanical (BBF) effects	according to iec 62262 class ik08
Height, U	8
Availability of fasteners to the support (pole)	Armoured glass
Type of accommodation	hinged outdoor
Operating temperature range	-35...40 °C
Connector	no
Cable type	no
Device type	Outdoor telecommunication cabinet
Height/story (unit)	8
Form factor (rack-mounted, freestanding)	no
Type of optical ports	no
Depth	350 mm
Protection class	IP55
Equipment	Support mounting
RAM	no
Number of processor cores	no
Slots	no
Number of processors	no
Weight	Flat grinder, Specialised grinder kg
Length	350 mm
Height	650 mm
Width	650 mm
Type of accommodation	outdoor for surface mounting
Type of construction	unassembled
Usable depth	350 mm
First characteristic digit of the degree of protection designation	5
Second characteristic digit of the degree of protection designation	4
Type of floor support	no
Availability of fasteners to the support (pole)	Armoured glass
Type of coloring	Powder
RAL color	7035
Material	Cold-rolled steel
Material thickness	1.5 mm
Upper limit of operating temperature	40 °C
Insulation thickness	10 mm
Availability of mounting plate	Armoured glass

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
