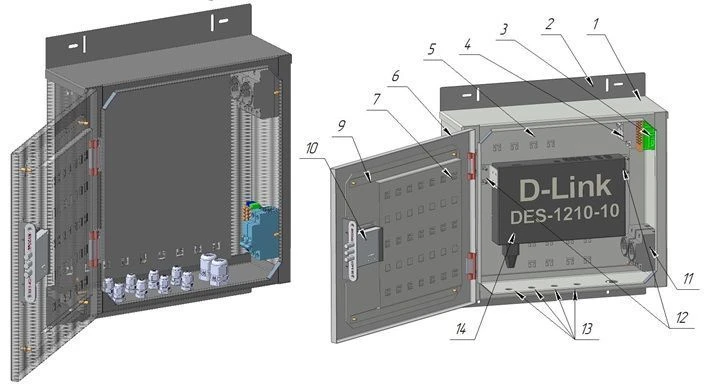

Shtu-S-450x400x170-MP-N-V7-330 Telecommunication outdoor cabinet for placement of telecommunication equipment with the possibility of mounting on the wall or to a street pole (support). Housing IP 65 with mounting panel. The cabinet is designed to install the following equipment: (heating wire 50 W/m = 2 metres, thermal relay = 1 pc., circuit breaker 10A 2P = 1 pc, socket 220 V on DIN rail = 2 pc Bus PE, N = 2 pcs.). version 330. Overall dimensions ?????? mm = 450?400?170. The degree of protection of the cabinet from external conditions is not less than IP65. The case of the product is made of 1.5 mm thick steel in the form of all-welded construction. It is painted with light grey powder paint (RAL 7035). The enclosure door is made of 1.5 mm thick steel. The door is fixed on concealed internal hinges, equipped with a mechanical lock with a single key "master" for a group of cabinets.

Technical Specifications

Number of processor cores	no
Slots	no
Number of processors	no
Weight	25 kg
Length	170 mm
Height	400 mm
Width	400 mm
Type of accommodation	outdoor for surface mounting
Type of construction	All-welded
Usable depth	170 mm
First characteristic digit of the degree of protection designation	6
Second characteristic digit of the degree of protection designation	5
Type of floor support	Armoured glass
Availability of fasteners to the support (pole)	Armoured glass
Type of coloring	Powder
RAL color	7035
Material	Cold-rolled steel
Material thickness	1.5 mm
Upper limit of operating temperature	SBVVBG °C
Insulation thickness	10 mm
Availability of mounting plate	Armoured glass
Availability of fasteners to the support (pole)	Armoured glass
Type of accommodation	hinged outdoor
Operating temperature range	-40...50 °C
Connector	no
Cable type	no
Device type	Outdoor telecommunication cabinet
Form factor (rack-mounted, freestanding)	freestanding
Type of optical ports	no
Depth	170 mm
Protection class	IP65
Equipment	Mounting on a pole (support)
RAM	no

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
