Outdoor telecommunication cabinet ???-?-42U-1100?2450?800-??

Telecom Equipment Components

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

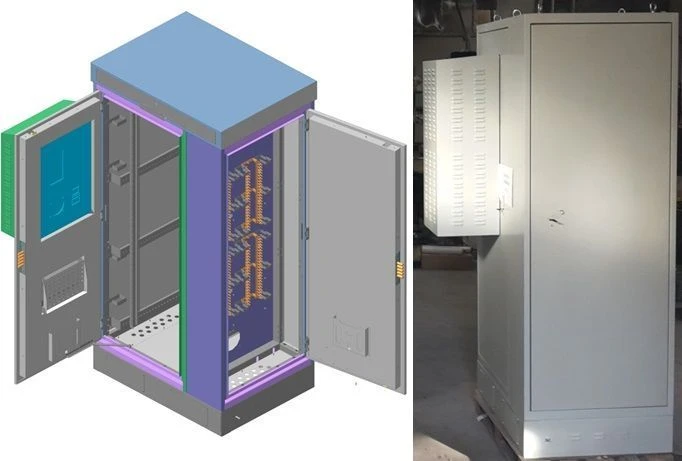

???-?-42U-1100?2450?800-??. Outdoor telecoms cabinet for telecoms equipment installation on the foundation. Mounting profiles 19" height 42U. Execution: functional compartment and cross compartment with capacity of 1800 steams. The cabinet is intended for installation of the following equipment: VRU-19-3U = 1 k-t, conditioner 2000W=1 pc, thermostat ?? = 1 pc, heater 220 V, 350 W=1 pc, sensors = 1 k-t. Overall dimensions ?????? mm = 1100?2450?800. Plinth height 200 mm. Roof height 150 mm. IP 55. The product is an all-weather outdoor vandal-proof telecommunication cabinet designed for telecommunication equipment placement in moderate climate conditions. The external structural elements of the cabinet are made of high-strength steel 1.5 mm thick and have a protective anti-corrosion epoxy powder coating with pre-phosphatised surfaces.
Plinth, height 200 mm.

Specifications

Height 2450 mm

Width 1100 mm

Type of accommodation outdoor for floor mounting

Type of construction unassembled

Usable depth 800 mm

First characteristic digit of the degree of protection designation 5

Second characteristic digit of the degree of protection designation 5

Type of floor support Armoured glass

Availability of fasteners to the support (pole) no

Type of coloring Powder

RAL color 7035

Material Cold-rolled steel

Material thickness 1.5 mm

Upper limit of operating temperature 60 °C

Type of accommodation outdoor

Height, U 42

Operating temperature range -40...60 °C

Device type Outdoor telecommunication cabinet

Height/story (unit) 42

Form factor (rack-mounted, freestanding) freestanding

Depth 800 mm

Weight 170 kg

Length 800 mm

Insulation thickness 10 mm

19" profile for mounting equipment Armoured glass

Usable height, U 42

Heater Armoured glass

Resistance to mechanical external influencing factors (EIF) according to gost 17516.1-90 (IEC 721-3-3-87) - m42

Resistance to mechanical (BBF) effects according to iec 62262 class ik08

Cooling capacity 2000 W

Number of compartments 2

Cross capacity, pairs 1800

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
