Outdoor telecommunication cabinet ???-?-400?400?400?350-MP-Rt.

Telecom Equipment Components

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

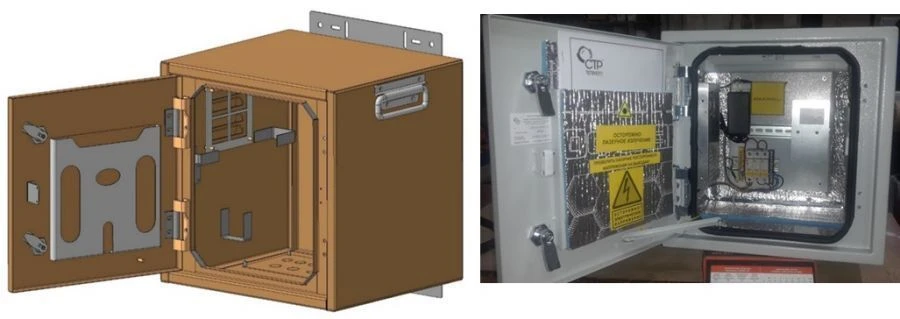

???-?-400?400?350-??-Rt. Telecommunication outdoor cabinet for placement of telecommunication equipment with the possibility of mounting on the wall or to a street pole (support). Housing IP 54. The cabinet is designed to install the following equipment: circuit breaker 1A 1P = 1 pc, 2A 1P = 1 pc, 4A 1P = 1 pc socket 220 V on DIN rail = 1 pc. Bus N = 1 pc. lamp = 1 pc. inverter SDR-480-48 MW = 1 pc. optical cross-country 4 ports = 1 pc, controller with a set of sensors = 1 pc. Overall dimensions ????? mm = 400?400?350. The product is an all-weather outdoor vandal-proof telecommunication cabinet, designed to accommodate telecommunication equipment in a temperate climate with ambient air temperature from - 40°C to +50°C. The external structural elements of the cabinet are made of high-strength steel 1.5 mm thick and have a protective PPK coating after preliminary phosphating of the surfaces. On the walls and the door of the cabinet are elements of the grounding circuit

Technical Specifications

Availability of fasteners to the support (pole)	Armoured glass
Type of accommodation	hinged outdoor
Operating temperature range	-35...40 °C
Connector	no
Cable type	no
Device type	Outdoor telecommunication cabinet
Form factor (rack-mounted, freestanding)	freestanding
Type of optical ports	no
Depth	350 mm
Protection class	IP54
Equipment	no
RAM	no
Number of processor cores	no
Slots	no
Number of processors	no
Weight	45 kg
Length	350 mm
Height	400 mm
Width	400 mm
Type of accommodation	outdoor for surface mounting
Type of construction	unassembled
Usable depth	300 mm
First characteristic digit of the degree of protection designation	5
Second characteristic digit of the degree of protection designation	4
Type of floor support	no
Availability of fasteners to the support (pole)	Armoured glass
Type of coloring	Powder
RAL color	7035
Material	Cold-rolled steel
Material thickness	1.5 mm
Upper limit of operating temperature	40 °C
Insulation thickness	10 mm
Availability of mounting plate	Armoured glass
Resistance to mechanical external influencing factors (EIF)	according to gost 17516.1-90 (IEC 721-3-3-87) - m42
Resistance to mechanical (BBF) effects	according to iec 62262 class ik08

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
