Outdoor complete transformer substations with capacity from 25 to 2500 kVA at voltage up to 10 kV, type: KTPN

Komplete transformer substations outdoor installation (KTPN) are designed to receive, convert and distribute electrical energy of three-phase alternating current frequency of 50 Hz in systems with a blind-earthed neutral transformer on the low-voltage side. The highest nominal voltage is 6 or 10 kV, the lowest 0.4 kV. They are used mainly in power supply networks of industrial enterprises, rural and urban settlements, as well as for temporary power supply of construction sites and other facilities. KTPN by type are subdivided into:
- Mast and pole. Installation of equipment KTPN on reinforced concrete supports;

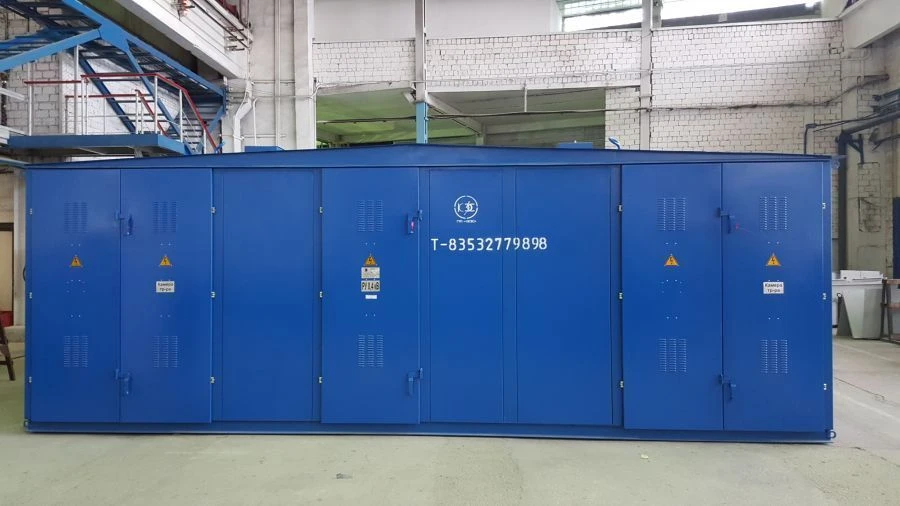

- Kiosk type in a metal case;
- Insulated - housing made of "sandwich" type panels with basalt fibre filler;
-Container type in metal block-module, container size 20 and 40 f;
-BKTP, in a concrete case and urban type in the case of thermocomposite material, analogue of concrete, vandal-proof performance.
KTPN made of concrete, analogue of concrete, vandal-proof execution...
