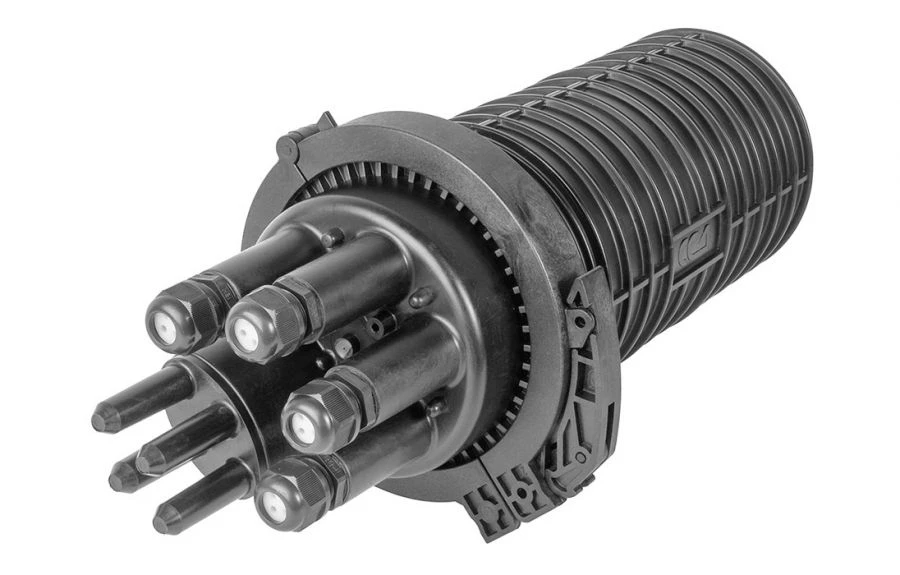

MKO-V Optical Splitter Cross-Connect for Efficient FTTH/PON Installation

Designed for use in FTTH/PON networks with installation of modular planar optical splitters of the 2nd kasad, for installation of optical cables (OC), laid (suspended) in the open air and inside technical premises (attics, basements). Sealing of distribution OC is carried out by means of TUT, subscriber drop cables - in turret type fittings. The coupling design provides:

• - input and fastening of 2 dielectric OC with the diameter of the outer sheath up to 21 mm;
• input and fastening of 16 subscriber OK with diameter 2...4 mm;
• possibility to organise "transit" input of one optical fibre optic cable;
• placement of up to 24 optical fibre bundles (KDZS 4525);
• installation of two 1x8 optical modular splitters (or four 1x4 modular splitters);
• installation of 4 optical sockets (adapters) of SC type.
