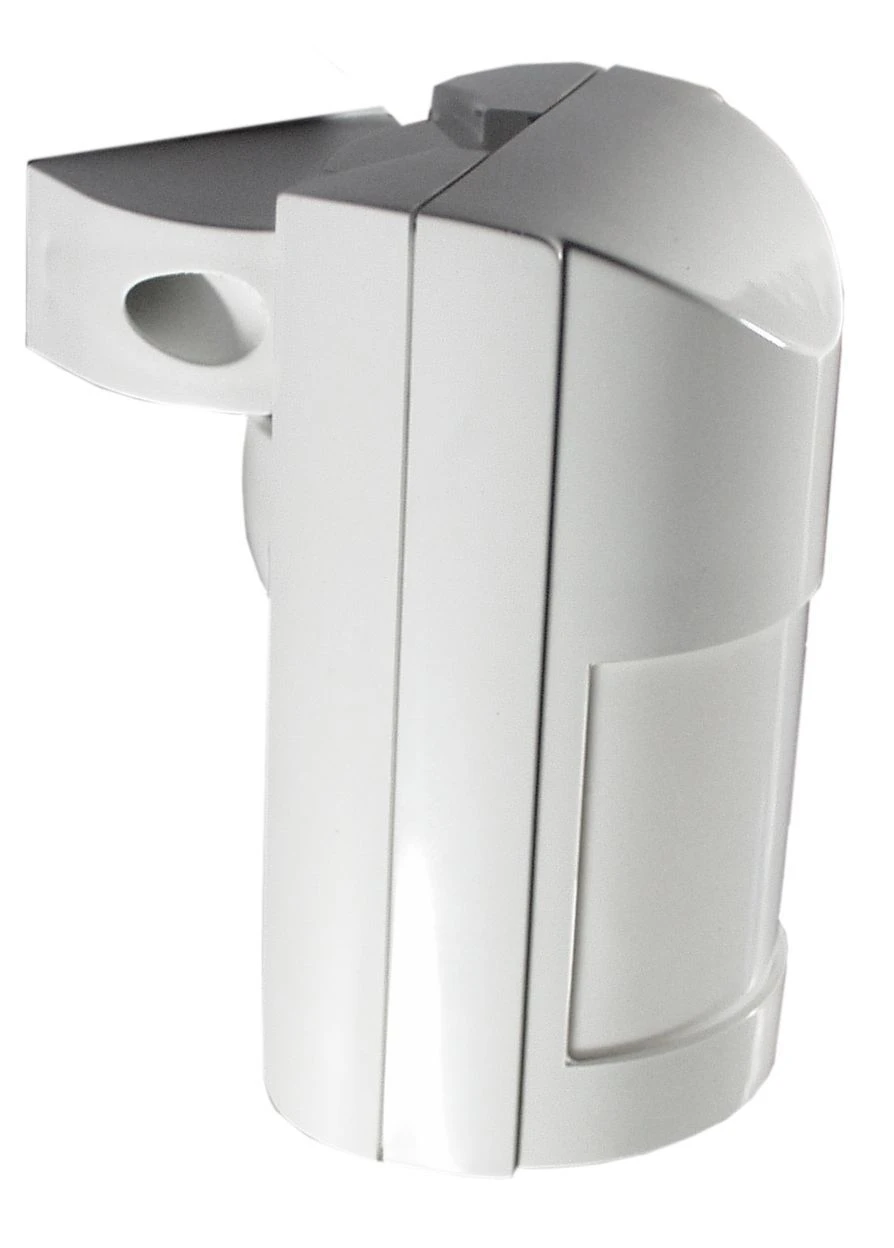

Optical-Electronic Addressable Intrusion Detector Ikar-5IB for Indoor Security

Ikar-5IB addressable optical-electronic detector is designed to detect intrusion into the protected space of a closed room and the formation of alarm notification. The detector "Ikar-5IB" forms a surface detection zone of the "vertical curtain" type with a range of 10 m at installation height from 2.0 to 3.0 metres. Technical readiness time of the detector for operation is not more than 60 s.

Time of detector restoration to the standby mode after issuing an alarm notification - not more than 10 s. 1.9 The detector is powered via a signal line connected to the BSL240-I signal line unit or another control panel with a similar protocol of exchange between the control panel and the detector. The overall dimensions of the detector are 91×53×43 mm.

The weight of the detector is not more than 0.1 kg. The design of the detector provides the degree of protection by the IP41 shell according to GOST 14254.
