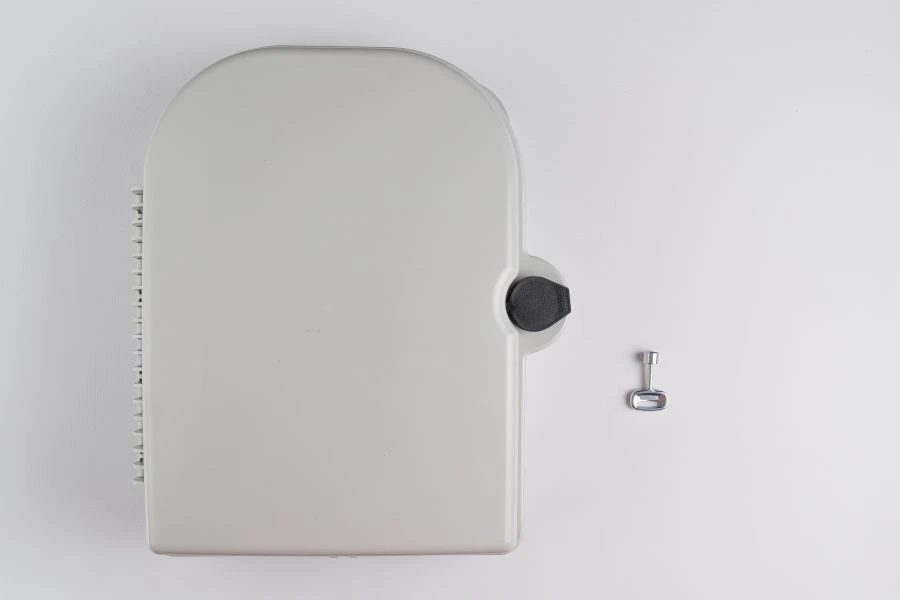

Optical distribution cabinet UFN-FTTH-SPLIT

Plastic Utility Products

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Optical distribution cabinet is designed for use in data transmission systems for connection and switching of trunk and subscriber optical cables (without conductive elements in the design).The cabinet is optimised for communication FTTH networks using PON technology. The cabinet has places for installation of adapters, provides and realises protection of connections from external influencing factors. The cabinet is suitable for installation outdoors, including on the walls of buildings, as well as indoors. The cabinet provides fixing of power elements of optical cables core, laying of stocks of optical fibre lengths, possibility of marking of optical fibres and connection of control and measuring equipment.

Technical Specifications

Type of product according to PP RF 616	Plastic products other, not included in other groupings (introduced by the Change 13/2016 OKPD2, approved by the Order of Rosstandart of 28.09.2016 N 1237-st)
Material	Plastic, resistant to UV and temperature fluctuations
Weight, up to	1.6 kg
Operating temperature	-40...60 °C
Degree of protection	IP65
Number of SC/LC Duplex type adapter	4 pc
Number of KDZS sleeves to be installed	48 pc
Number of installable optical dividers in a mini case (90x20x10 mm)	2 pc
Number of installable optical dividers of cassette type ( 130x100x25 mm)	2 pc
Number of 3x2mm SM1 subscriber cable glands, up to	24 pc
Number of subscriber cable glands - SM1 of 5x2mm size, to	B1/B8 2100/900 MHz pc
Permissible diameter of cables to be inserted, up to	14 mm
Number of line cable entries	3 pc
Mounting	Outdoors, including on the walls of buildings, and indoors
Color	Grey (any RAL colour is possible)
Depth	110 mm
Width	270 mm
Length	330 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
