Optical communication cable type VD

Manufacturer:
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Key Highlights

  • Made in Russia - engineered for durability
  • Suitable for challenging environments
  • Lower cost of ownership than European alternatives
  • Bulk orders available with volume discounts
  • Documentation and customs clearance assistance provided
Cable for the manufacture of connecting optical cords, for stationary installation of equipment, as well as for use in local computer networks as optical cords and for the formation of horizontal SCS with laying in boxes to the working inside buildings and structures and operation at ambient temperatures from minus 10 ° C to 50 ° C.

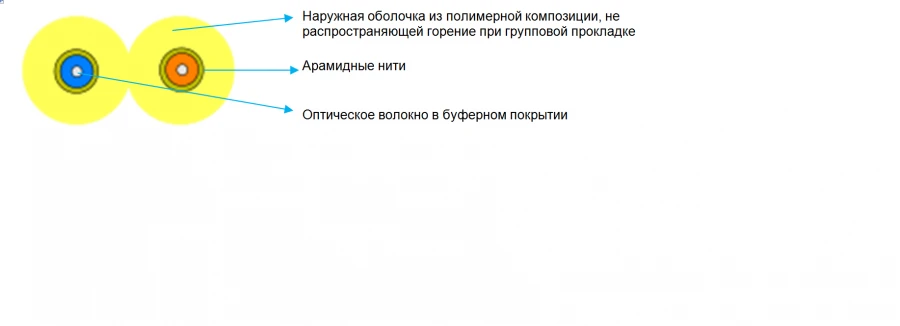

Two parallel optical fibres, each in an individual dense buffer coating, reinforcing strands, enclosed in their sheaths made of a composition that does not spread combustion in group laying. The two sheaths are connected by a jumper
Optical characteristics:
The attenuation coefficient of single-mode optical fibres (core/sheath dimensions 9/125) at a wavelength of 1310 nm is not more than 0.36 dB/km, at a wavelength of 1550 nm not more than 0.22 dB/km.
Attenuation coefficient of multimode optical fibres (core/shell dimensions 50/125) at wavelength 850 nm not more than 3.0 dB/km, at wavelength 1300 nm not more than 0.7 dB/km.
The coefficient of ...

Technical Specifications

The type of optical fiber in the cable: MSE-T G.652.D, MSE-T G.655, MSE-T G.657, MSE-T G.651, ISO/IEC 11801
Number of optical fibers in the cable: 2 pc
Dielectric construction: Armoured glass
The presence of a conductive core: no
Presence of protective coverings: Aramid yarns, extruded polymer protective hose
Cable Type: The cable is intended for application on the unified telecommunication network of the Russian Federation, it is intended for vertical laying inside buildings and constructions as an installation cable and for manufacturing of optical connecting cords.

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
