Optical Communication Cable OKP-2Sp for Versatile Applications

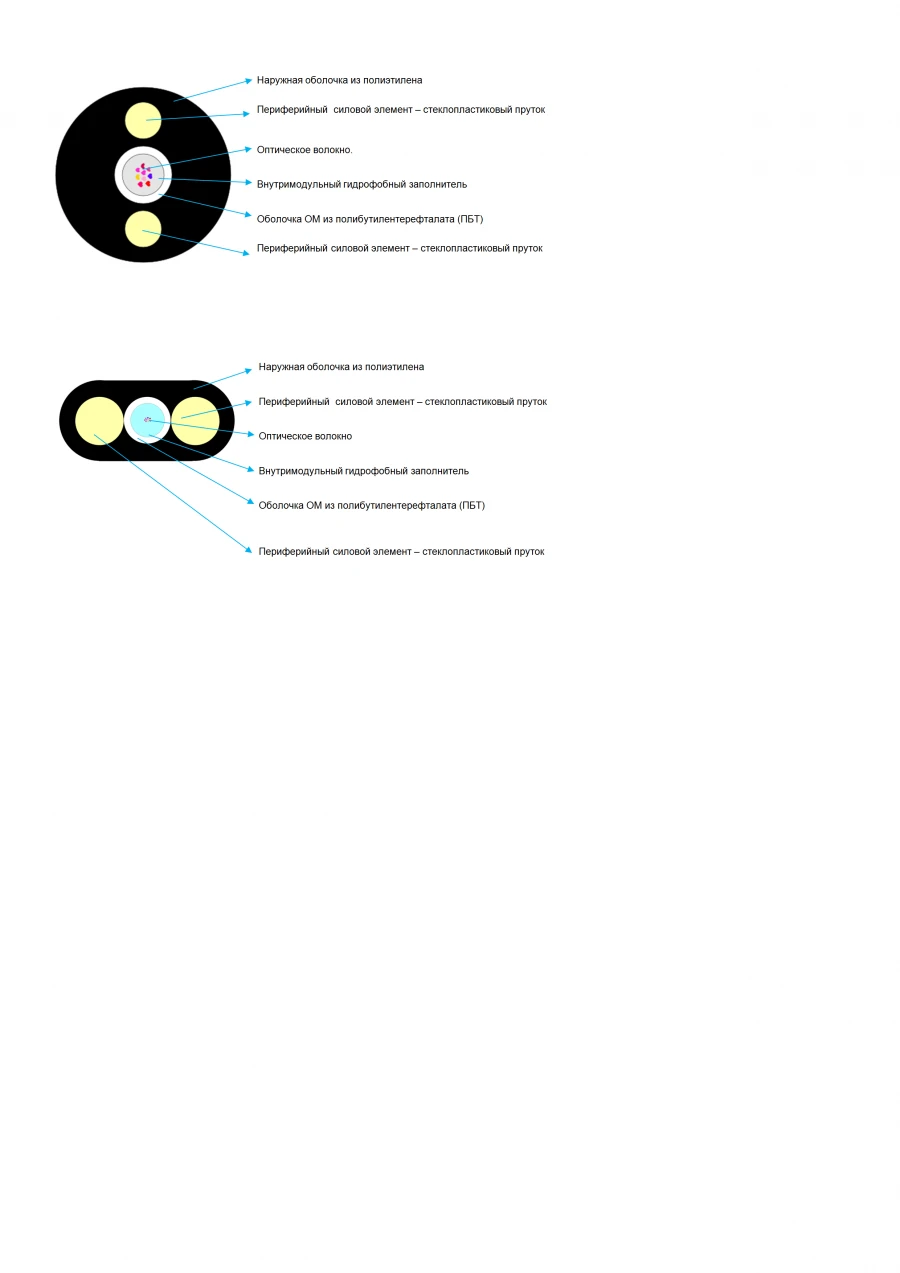

Cable for suspension on supports of communication lines, lighting, between buildings and constructions, inside buildings and constructions and operation at ambient temperature from minus 60 °? to 70 °?. The outer sheath is made of polymer compositions with consideration of application: at cable entry into the premises from polymer compositions, not spreading burning; in other cases - from polyethylene; power peripheral elements from fibreglass bars, the central optical module.

Optical characteristics: Attenuation coefficient of single-mode optical fibres (core/shell dimensions 9/125) at a wavelength of 1310 nm not more than 0.36 dB/km, at a wavelength of 1550 nm not more than 0.22 dB/km. Attenuation coefficient of multimode optical fibres (core/shell dimensions 50/125) at wavelength 850 nm not more than 3.0 dB/km, at wavelength 1300 nm not more than 0.7 dB/km. The attenuation coefficient of multimode optical fibres (core/shell dimensions 62.5/125) at a wavelength of 850 nm is not more than 3.0 dB/km, at a wavelength of...
