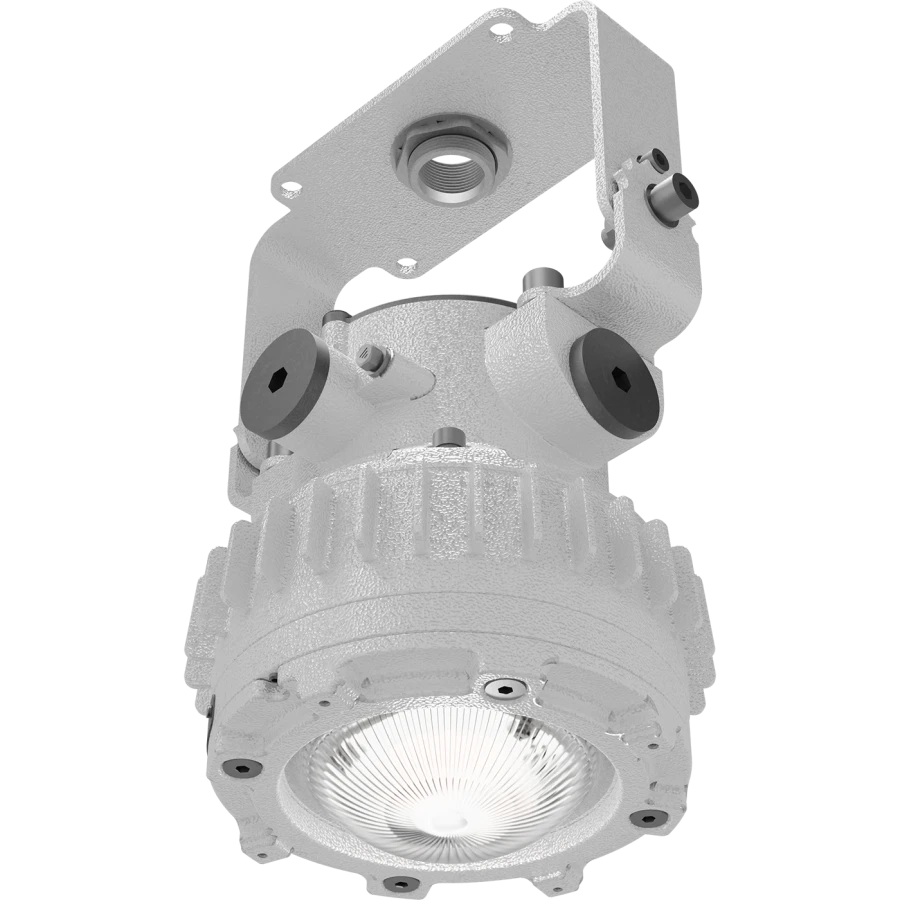

ONIX LED Ex Explosion-Proof Light 15W for Safe Industrial Lighting

LED Ceiling & Wall Lights

Manufacturer:LLC "MGK "LIGHT TECHNOLOGIES"

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Series of explosion-proof luminaires ONIX LED Ex for outdoor and indoor lighting of oil and gas industry enterprises, designed to replace luminaires with incandescent lamps up to 200W. The luminaire is a highly efficient solution with a high IP66 rating and the possibility of transit cable routing.

Specifications

Lamp type

LEDs

Type of luminaire

Point

Type of explosion protection

1Ex db IIC T6 Gb/ Ex tb IIIC T80oC Db, 1Ex db IIC T5 Gb/ Ex tb IIIC T95oC Db

Explosion-proof

Armoured glass

Mounting type

Swivelling bracket with G3/4 coupling

Type of supply current

AC/DC

Climatic execution (according to GOST 15150-69)

UHL1

Rated supply voltage

ASC: 12 V, 24 V, 36 V, 48 V, 230 V / DC: 12 V, 24 V, 36 V, 48 V, 230 V

IK code

IK07/2 J

Luminous flux ripple factor

<1%

Overall color rendering index

Correlated color temperature

3000...5000 K

Lower operating temperature value

-60 °C

Upper operating temperature value

40; 60 °C

Form

Round

Diffuser material

Tempered glass

Housing material

Aluminum

Degree of protection (IP)

IP 66

Power factor

>0,95

Protection class against electric shock

Height

283 mm

Width

165 mm

Power consumption

12...16 W

Luminous flux

1800...2200 lm

Length

212 mm

Net weight

4.6 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
