Available for Import

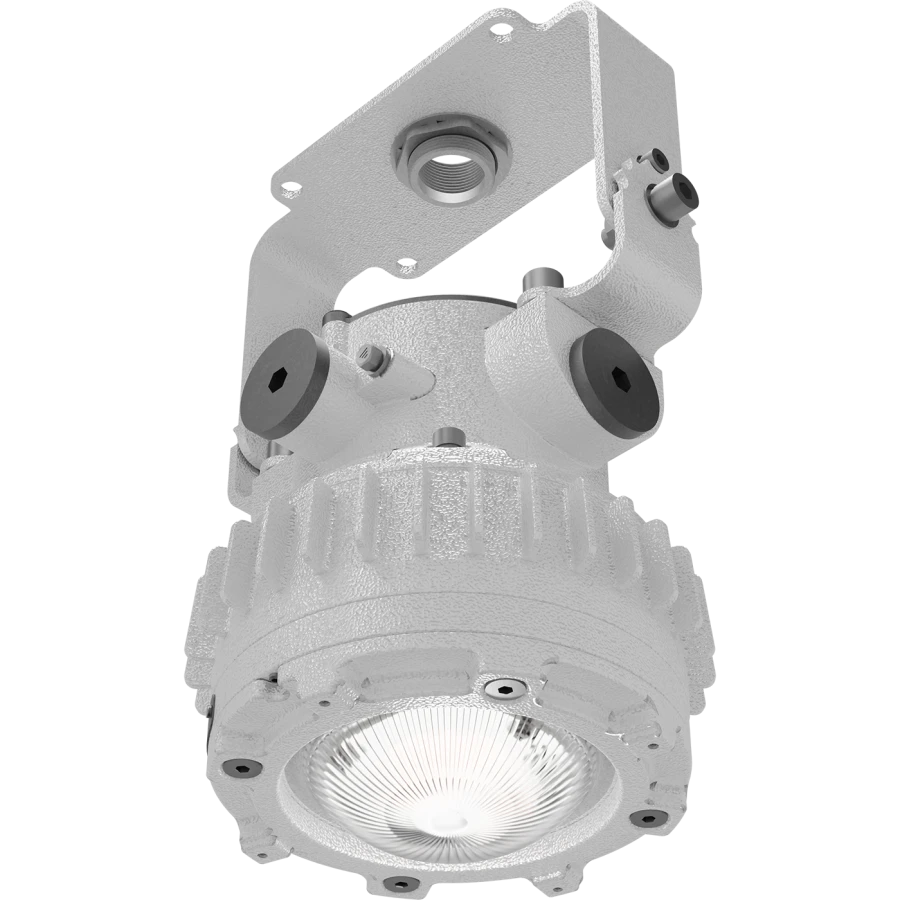

ONIX LED Ex/BT 25W luminaire

LED Ceiling & Wall Lights

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Series of explosion-proof luminaires ONIX LED Ex for outdoor and indoor lighting of oil and gas industry enterprises, designed to replace luminaires with incandescent lamps up to 200W. The luminaire is a highly efficient solution with a high IP66 rating and the possibility of transit cable routing.

Specifications

Lamp type LEDs

Type of luminaire Point

Type of explosion protection 1Ex db IIC T6 Gb/ Ex tb IIIC T80oC Db, 1Ex db IIC T5 Gb/ Ex tb IIIC T95oC Db

Explosion-proof Armoured glass

Mounting type Swivelling bracket with G3/4 coupling

Type of supply current AC/DC

Climatic execution (according to GOST 15150-69) UHL1

Rated supply voltage ASC: 12 V, 24 V, 36 V, 48 V, 230 V / DC: 12 V, 24 V, 36 V, 48 V, 230 V

IK code IK07/2 J

Luminous flux ripple factor <1%

Overall color rendering index 80

Correlated color temperature 3000...5000 K

Lower operating temperature value -60 °C

Upper operating temperature value 40; 60 °C

Form Round

Diffuser material Tempered glass

Housing material Aluminum

Degree of protection (IP) IP 66

Power factor >0,95

Protection class against electric shock I

Height 283 mm

Width 165 mm

Power consumption 25...31 W

Luminous flux 3240...3960 lm

Length 212 mm

Net weight 4.6 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
