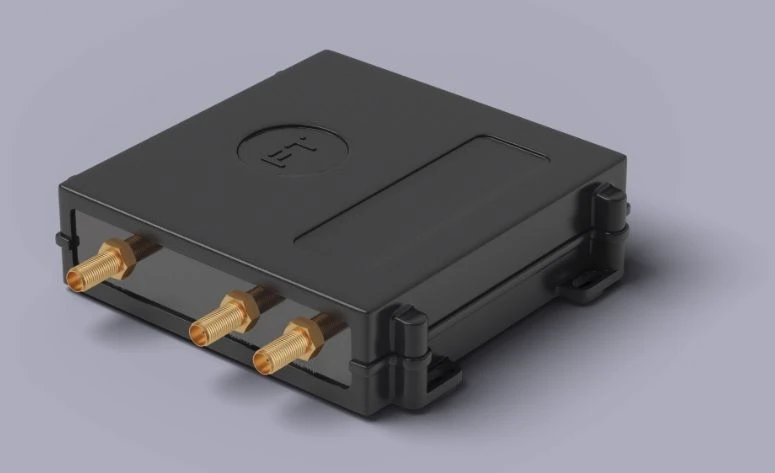

On-Board Telecommunications Terminal (OBU) TEDIX-V2 for V2X Data Communication

Radio Navigation Equipment

Manufacturer: FORT-TELECOM LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The TEDIX-V2 on-board telecommunication terminal (OBU) is installed on vehicles and is designed to function as part of a data transmission network using the V2X (IEEE 802.11p) standard between vehicles, road infrastructure elements and intelligent transport system. The terminal provides the following functions: <ul> <li>- reception / transmission of radio signals in the V2X network using the DSRC standard (IEEE 802.11p)</li> <li>receiving signals from GLONASS and/or GPS satellites and determining the geographical coordinates of the object</li> <li>interaction with wireless devices using Bluetooth or WiFi technology to organise a human-machine interface for displaying graphic and textual information to the driver of the vehicle</li> <li>interaction with the on-board network of the vehicle via CAN interface</li> <li>interaction with external devices via RS-232 and RS-485 interfaces</li> <li>interaction with a personal computer via microUSB interface when performing terminal configuration tasks</li> </ul>

Specifications

Availability of RS-232 pads with 10-pin connector for server management module

Availability of INT_SW pads with 2-pin connector for tamper switch

Armoured glass

Connectors

RJ45

Type of network ports

Ethernet 100Base-TX

Supported interfaces

Ethernet 10/100/1000; CAN RS-485

Number of processor cores

4 pcs

Number of processors

1 pcs

Slots

SO-DIMM

Support for domestic server management module

Support for domestic hardware and software trusted boot module

Number of JTAG pads with 10-pin connectors for CPU, KPI diagnostics

1 pcs

Number of SPI pads with 8-pin connectors for ROM update

1 pcs

Number of USB 2.0 pads with type A connector

1 pcs

Number of USB 2.0 peripheral ports with type A connectors

1 pcs

Processor frequency

Number of Network Ports (Piece)

1 pcs

Number of long-term memory ports (HDD, SSD)

<8 pcs

Number of INT_SW pads with 2-pin connector for tamper switch

1 pcs

GNSS receiver sensitivity in capture mode

-148

GNSS receiver sensitivity in tracking mode

-167

Number of working channels of navigation receiver

184 pcs

Frequency range of the V2X transceiver

5.85...5.925

V2X transmitter power

0...20

V2X receiver sensitivity

-98

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
