NS W foot, uncemented, revision. Diameter/Length: 24/345 mm. Item No. 090.244.345 Available for Import

NS W foot, uncemented, revision. Diameter/Length: 24/345 mm. Item No. 090.244.345

Artificial Joint Implants
Manufacturer:
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Key Highlights

  • Made in Russia - engineered for durability
  • Suitable for challenging environments
  • Lower cost of ownership than European alternatives
  • Bulk orders available with volume discounts
  • Documentation and customs clearance assistance provided

Available Models

NS W foot, non-cemented, revision. Diameter/Length: 14/305 mm. Item No. 090.144.305 NS W foot, non-cemented, revision. Diameter/Length: 19/225 mm. Item No. 090.194.225 NS W foot, uncemented, revision. Diameter/Length: 15/265 mm. Item No. 090.154.265 NS W foot, non-cemented, revision. Diameter/Length: 16/190 mm. Item No. 090.164.190 NS W foot, uncemented, revision. Diameter/Length: 25/305 mm. Item No. 090.254.305
NS W foot, non-cemented, revision. Diameter/Length: 14/265 mm. Item No. 090.144.265 NS W foot, non-cemented, revision. Diameter/Length: 14/345 mm. Item No. 090.144.345 NS W foot, uncemented, revision. Diameter/Length: 15/305 mm. Item No. 090.154.305 NS W foot, uncemented, revision. Diameter/Length: 16/345 mm. Item No. 090.164.345 NS W foot, non-cemented, revision. Diameter/Length: 23/305 mm. Item No. 090.234.305 NS W foot, non-cemented, revision. Diameter/Length: 15/345 mm. Item No. 090.154.345 NS W foot, non-cemented, revision. Diameter/Length: 15/190 mm. Item No. 090.154.190 NS W foot, uncemented, revision. Diameter/Length: 16/265 mm. Item No. 090.164.265 NS W foot, uncemented, revision. Diameter/Length: 18/345 mm. Item No. 090.184.345 NS W foot, uncemented, revision. Diameter/Length: 16/305 mm. Item No. 090.164.305 NS W foot, non-cemented, revision. Diameter/Length: 17/305 mm. Item No. 090.174.305 NS W stem, uncemented, revision stem. Diameter/Length: 14/190 mm. Item No. 090.144.190 NS W foot, non-cemented, revision. Diameter/Length: 14/225 mm. Item No. 090.144.225 NS W foot, uncemented, revision. Diameter/Length: 20/190 mm. Item No. 090.204.190 NS W foot, uncemented, revision. Diameter/Length: 23/345 mm. Item No. 090.234.345 NS W foot, non-cemented, revision. Diameter/Length: 18/265 mm. Item No. 090.184.265 NS W foot, uncemented, revision. Diameter/Length: 22/305 mm. Item No. 090.224.305 NS W foot, non-cemented, revision. Diameter/Length: 19/190 mm. Item No. 090.194.190 NS W foot, non-cemented, revision. Diameter/Length: 21/345 mm. Item No. 090.214.345 NS W foot, non-cemented, revision. Diameter/Length: 17/265 mm. Item No. 090.174.265 NS W foot, non-cemented, revision. Diameter/Length: 18/305 mm. Item No. 090.184.305 NS W foot, uncemented, revision. Diameter/Length: 20/225 mm. Item No. 090.204.225 NS W foot, non-cemented, revision. Diameter/Length: 24/305 mm. Item No. 090.244.305 NS W foot, non-cemented, revision. Diameter/Length: 20/345 mm. Item No. 090.204.345 NS W foot, non-cemented, revision. Diameter/Length: 16/225 mm. Item No. 090.164.225 NS W foot, uncemented, revision. Diameter/Length: 22/345 mm. Item No. 090.224.345 NS W foot, uncemented, revision. Diameter/Length: 17/190 mm. Item No. 090.174.190 NS W foot, non-cemented, revision. Diameter/Length: 19/305 mm. Item No. 090.194.305 NS W foot, uncemented, revision. Diameter/Length: 21/265 mm. Item No. 090.214.265 NS W foot, uncemented, revision. Diameter/Length: 20/305 mm. Item No. 090.204.305 NS W foot, non-cemented, revision. Diameter/Length: 18/225 mm. Item No. 090.184.225 NS W foot, uncemented, revision. Diameter/Length: 22/225 mm. Item No. 090.224.225 NS W foot, non-cemented, revision. Diameter/Length: 22/265 mm. Item No. 090.224.265 NS W foot, non-cemented, revision. Diameter/Length: 17/345 mm. Item No. 090.174.345 NS W foot, non-cemented, revision. Diameter/Length: 25/345 mm. Item No. 090.254.345 NS W foot, non-cemented, revision. Diameter/Length: 15/225 mm. Item No. 090.154.225 NS W foot, non-cemented, revision. Diameter/Length: 19/265 mm. Item No. 090.194.265 NS W foot, uncemented, revision. Diameter/Length: 20/265 mm. Item No. 090.204.265 NS W foot, non-cemented, revision. Diameter/Length: 19/345 mm. Item No. 090.194.345 NS W foot, non-cemented, revision. Diameter/Length: 17/225 mm. Item No. 090.174.225 NS W foot, non-cemented, revision. Diameter/Length: 21/225 mm. Item No. 090.214.225 NS W foot, uncemented, revision. Diameter/Length: 21/305 mm. Item No. 090.214.305 NS W foot, non-cemented, revision. Diameter/Length: 18/190 mm. Item No. 090.184.190

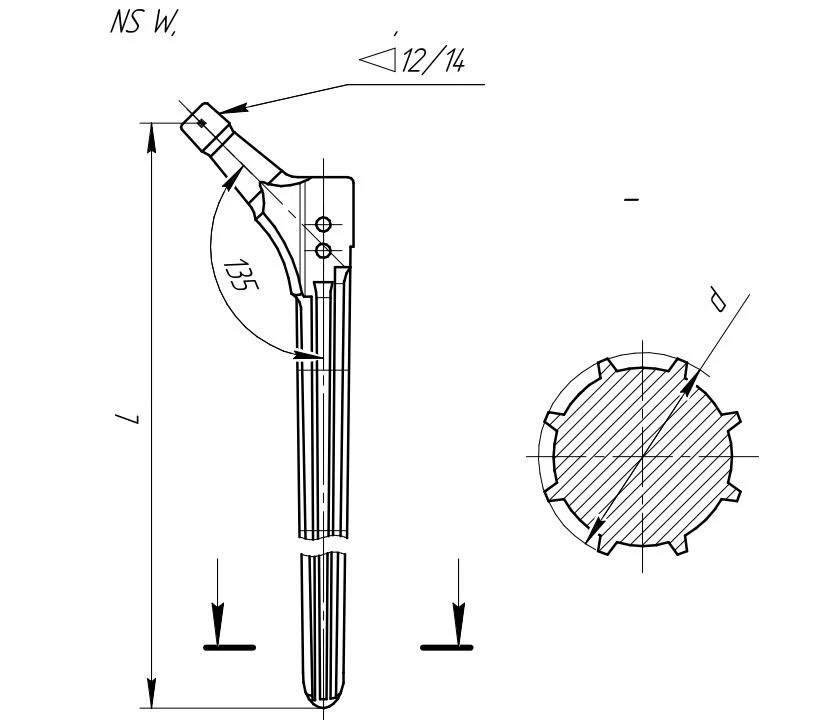

A sterile implantable product designed to replace the proximal femoral neck in total hip arthroplasty. The fixation of the product is performed by embedding its distal end into the cortical layer of the remaining part of the natural femur. This achieves mechanical adhesion without the use of bone cement. The product is made of titanium. The cross-section is round. The shape is conical. Micro-roughened surface, vertical grooves on the surface provide reliable primary press-fit fixation and serve to increase the contact area of the stem with the bone tissue, provide reliable press-fit and primary rotational stability. Laser labelling of the size and article of the product.

Technical Specifications

Leg length 345 mm
Foot diameter 24 mm
Neck cone 12/14
Neck-diaphyseal angle 135
Material Titanium alloy
Fixation type Cementless
MRI compatibility Armoured glass
Packaging individual triple according to GOST ISO 11607, from film according to GOST 10354
Size 24

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
