Non-Flame Spreading Signal and Locking Cable SBePng(A)-HF Available for Import

Non-Flame Spreading Signal and Locking Cable SBePng(A)-HF for Safety Systems

Signal Interlocking Cables
Manufacturer: REЖКАБЕЛЬ LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

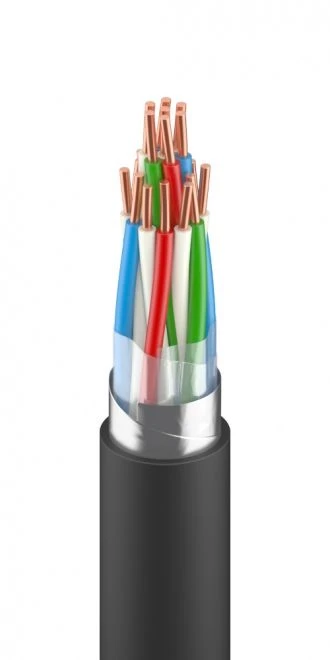

Signalling and interlocking cables, non-combustible, halogen-free, grade: SBPePng(A)-HF

Description

Cable for signalling and interlocking with copper conductive cores with diameter from 0,9 to 1,0 mm, number of cores from 3 to 61, pairs from 3 to 30, with polyethylene insulation, with belt insulation from PET-E film, with common screen from alumoflex, with sheath from polymeric halogen-free composition Designed for electrical installations of railway signalling, centralisation and interlocking, fire alarm and automation

Specifications

Electrical insulation resistance of conductive cores, recalculated for 1000 m of length and temperature 20 C for cables without
5000
Rated AC voltage
380 V
Operating temperature range
-40...60 °C
AC voltage test with nominal frequency of 50 Hz for 1 minute between cores
2500 V
Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
