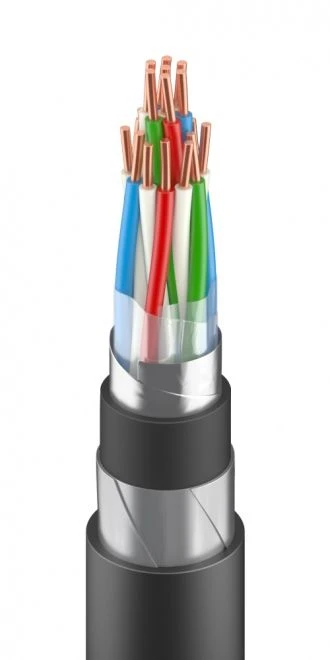

Non-Flame Spreading Signal and Locking Cable SBePBbPng(A)-HF for Safety Applications

Signal Interlocking Cables

Manufacturer: REЖКАБЕЛЬ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Signalling and interlocking cables, non-combustible, halogen-free, grade: ????????????(?)-HF

Description

Cable for signalling and interlocking with copper conductive cores with diameter from 0,9 to 1,0 mm, number of cores from 3 to 61, pairs from 3 to 30, with polyethylene insulation, with belt insulation from PET-E film; with the general screen from alumoflex, with a protective cover consisting of 2 steel galvanised tapes, with an internal sheath and a protective hose from the polymeric composition containing no halogens. Designed for electrical installations of railway signalling, centralisation and interlocking, fire alarm and automation

Specifications

Electrical insulation resistance of conductive cores, recalculated for 1000 m of length and temperature 20 C for cables without

5000

Rated AC voltage

380 V

Operating temperature range

-40...60 °C

AC voltage test with nominal frequency of 50 Hz for 1 minute between cores

2500 V

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
