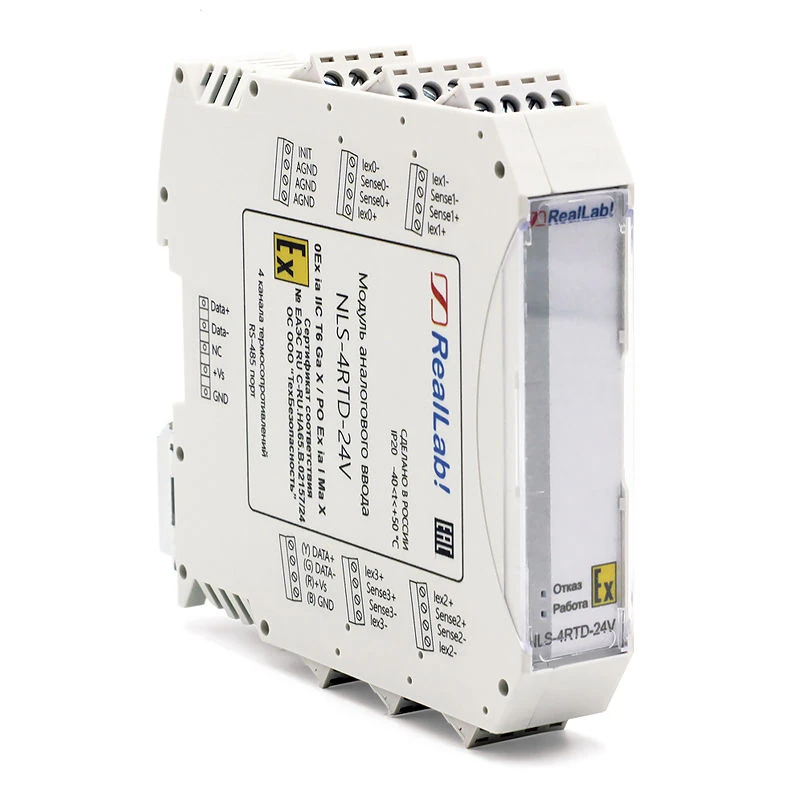

NLS-4RTD-24V Intrinsically safe module of analogue input of thermal resistance signals

Purpose: module of analogue input of thermistor signals Explosion protection marking: 0Ex ia IIC T6 Ga X or PO Ex ia I Ma X Analogue input: 4 differential channels of analogue input of thermistor signals types: Pt50, Pt100, Pt500, Pt1000, 50P, 100P, 500P, 1000P, Cu50, Cu100, Cu500, Cu1000, 50M, 100M, 1000M, 100N, 500N, 1000N Measurement error: max. 0.1 % Measuring ranges: independent setting of the thermoresistance type for each channel Connection options: 4 sensors by 4-wire, 3-wire or 2-wire connection scheme Digit capacity: 16 digits (ADC)Sensor control: hardware diagnostics of sensor breakage Galvanic insulation: 2500V Temperature: -40 to +50 C Connection interface: RS-485 interface, Modbus RTU protocol and ADAM-compatible (DCON) Power supply voltage: from 10 V to 26 V Power consumption: 0.6 W Dimensions (HxWxG): 109x22.5x113 mm Warranty: 18 months
