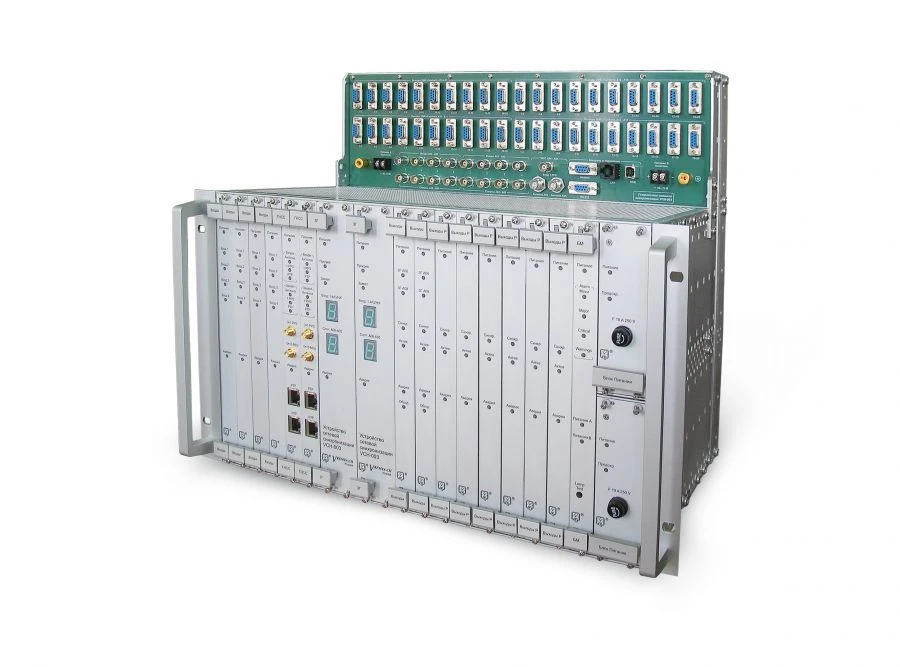

Network synchronisation device VCH-003

Manufacturer:
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Key Highlights

  • Made in Russia - engineered for durability
  • Suitable for challenging environments
  • Lower cost of ownership than European alternatives
  • Bulk orders available with volume discounts
  • Documentation and customs clearance assistance provided
Filtering, multiplication and storage of frequency and time signals in SDH/PDH digital communication networks and packet switched networks.Input signals: 1/5/10/2.048 MHz/E1 (8)Output signals: 2.048 MHz/E1 (80), 1PPS (2), 10 MHz (2)4 ethernet ports with selectable RJ-45/SFP connectors Quality control of input signals by MOOVI, DVI, df/fPTPv2+SyncE / NTP (G.8272)PEI mode (G.811) when capturing from GNSS GLONASS/GPS/GALILEO/BeiDouHot standby 1:1Internal oscillator type: quartz with double temperature control (G.812 Type I), or rubidium (G.812 Type II)Power consumption - 86 WD Dimensions (WxHxH) - 483x399x302 mmMounting - 19" rack Weight - 12 kgBenefits:Support up to 1024 PTPv2+SyncE clients per port support up to 50000 NTP clients per port create up to 16 PTP/NTP configurations on each port with different IPv4 addressescombiner of frequency and time ePRTC (G.8272.1)multi-band GNSS receiver (G.811.1)

Technical Specifications

Availability of power supply redundancy 1
Form factor 19"
Data transfer rate 1
Maximum data transfer rate 1000
Operation on multiple twisted pairs Armoured glass
User interfaces USB, RS-232, LAN
Support for quality of service mechanisms no
Management and control of work no
Power supply voltage 48 V
Placement no
Number of Ethernet ports 2 pc
Number of RS-422/232 interfaces 1 pc
Supported protocols TCP
Availability of transponders and aggregators with signal processing on FPGA with direct detection (linear transmission rate of 2 no
Availability of transponders and aggregators with signal processing on FPGA with coherent detection (linear bit rate ? 100 no
Support (hardware and management system level) for third-party products that perform channel encryption no
Possibility to modify VPO according to customer's requirements Armoured glass
Client interfaces USB, RS-232, LAN
Configuration with separate control processor no
Supported single optical wavelength data rates (list) 1
Maximum number of optical wavelengths 2 pc
LAN port speed, Mbps 10,100,1000
Connector type DB-9

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
