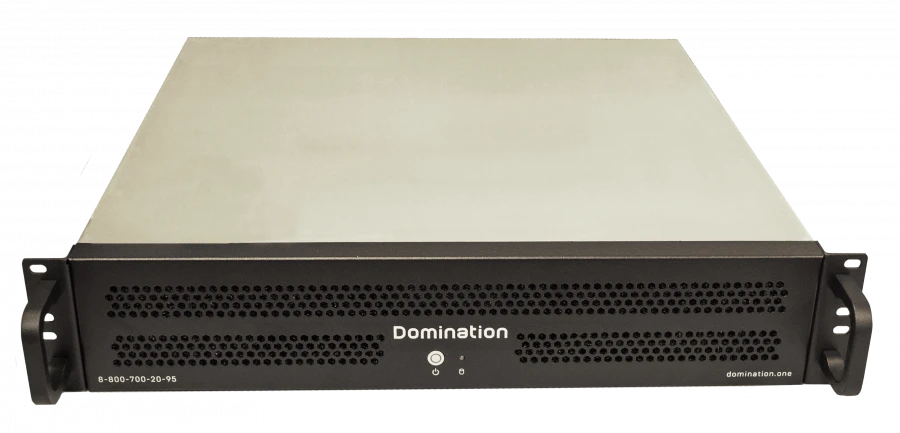

Network IP Video Server for 9 Cameras - Domination IP-9-4-MDR for Surveillance Applications

Wearable Video Systems

Manufacturer: VIPAKS+ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Domination IP-9T-4-MDR video server Domination IP-32AV-4-MDR video server

Description

The IP network video server is designed to connect 9 IP-cameras (with any resolution) of any manufacturer from the list of integrated ones. Supported video format H.265, H.264, MJPEG (via HTTP). Designed for recording video signal from video cameras and its storage.

The video server comes with software for remote configuration of the video server and for viewing cameras connected to it. The video server has baskets for installing up to 4 HDDs (any manufacturer) with the capacity of each up to 18TB. Incoming stream up to 800 Mbit/sec.

2 network boards. Support for audio channels of IP-cameras. Support for rotating IP-cameras.

Domination Linux operating system protected from viruses and external influences is installed on the video server.

Specifications

Number of licenses for connecting IP cameras

9 pcs

Number of audio channels

9 pcs

Operating system

Domination Linux

Motion detector

Support for built-in IP camera detectors

Maximum recording speed per channel

No restrictions

Recording modes

Continuous, by motion, by schedule, manually by operator, by contact closure/opening, by signal loss (recording duration without limitation), by video analytics events, event stream recording, audio recording.

Archive Mirroring

Armoured glass

Resolution per channel pixels

No restrictions

Supported HDD capacity

1...18

Maximum incoming flow Mbps

800

Maximum outgoing flow Mbps

800

Built-in network card

2 x LAN 10/100/1000 Mbps

Protocol/standard for connecting to IP cameras

HTTP, RTSP, ONVIF

Video output

VGA and/or HDMI (diagnostic only)

Power supply voltage

AC220 - 240V, 50Hz

Maximum power consumption

300

Temperature mode

5...40 °C

Country of origin

Russia

Size WxHxH (mm)

430 x 420 x 90

Number of HDD bays pcs.

4 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
