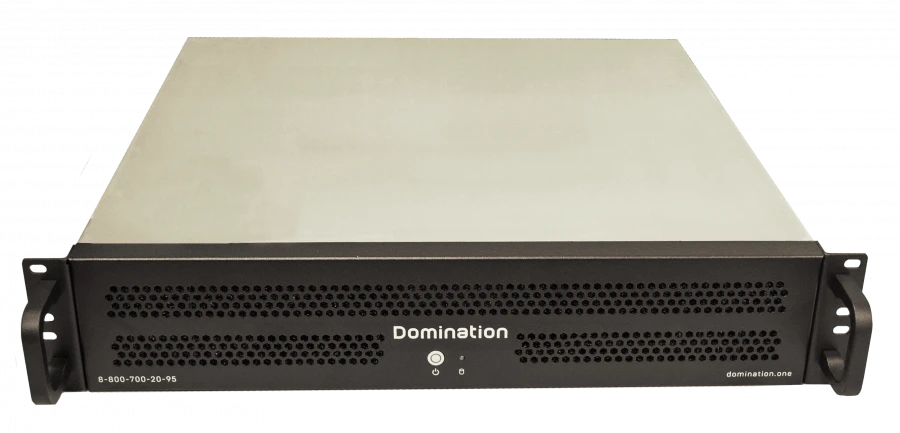

Network IP Video Server for 32 Cameras Domination IP-32T-4-MDR – Ideal for Surveillance

Wearable Video Systems

Manufacturer: VIPAKS+ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Domination IP-X-4-MDR video server Domination IP-16T-4-MDR video server Domination IP-32-4-MDR video server Domination IP-16-4-MDR video server Domination IP-XAV-4-MDR video server

Domination IP-24-4-MDR video server Domination IP-24T-4-MDR video server

Description

Network IP-video server is designed to connect 32 IP-cameras (with any resolution) of any manufacturer from the list of integrated ones. Supported video format H.265, H.264, MJPEG (via HTTP). Designed for recording video signal from video cameras and its storage.

The video server comes with software for remote configuration of the video server and for viewing cameras connected to it. Video server has baskets for installing up to 4 HDD (any manufacturer) each up to 20TB.Incoming stream up to 800 Mbit/sec. 2 network boards.

Support for audio channels of IP-cameras. Support for rotating IP-cameras. Astra Linux operating system protected from viruses and external influences is installed on the video server.

Specifications

Number of HDD bays pcs.

4 pcs

Size WxHxH (mm)

430 x 420 x 90

Country of origin

Russia

Temperature mode

5...40 °C

Maximum power consumption

300

Power supply voltage

AC220 - 240V, 50Hz

Video output

VGA and/or HDMI (diagnostic only)

Protocol/standard for connecting to IP cameras

HTTP, RTSP, ONVIF

Built-in network card

2 x LAN 10/100/1000 Mbps

Maximum outgoing flow Mbps

800

Maximum incoming flow Mbps

800

Resolution per channel pixels

No restrictions

Archive Mirroring

Armoured glass

Recording modes

Continuous, by motion, by schedule, manually by operator, by contact closure/opening, by signal loss (recording duration without limitation), by video analytics events, event stream recording, audio recording.

Maximum recording speed per channel

No restrictions

Motion detector

Support for built-in IP camera detectors

Number of audio channels

32 pcs

Number of licenses for connecting IP cameras

32 pcs

Operating system

Astra Linux

Supported HDD capacity

1...20

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
