Available for Import

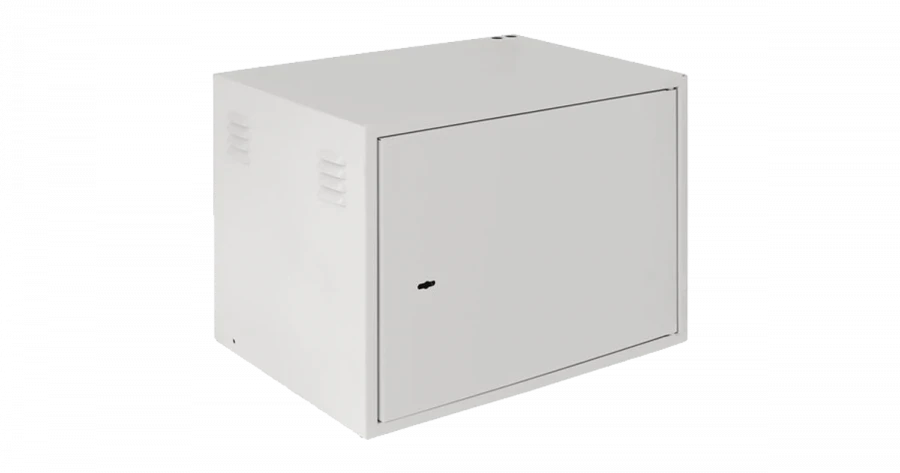

NETLAN EC-WS Series Telecom Cabinet

Metal Storage Cabinets

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Antivandal cabinets NETLAN combine high quality and attractive cost. Designed for installation in entrances, attics, technical and other rooms and areas without access control, protect equipment from unauthorised entry and burglary. The cabinets provide normal temperature and humidity conditions, with protection degree IP20 (protection against particles > 12.5 mm).
The maximum permissible distributed load on the cabinet is 100 kg.
The cabinet is powder-coated, impact-resistant, polymer-epoxy, light grey (RAL 7035). Other colours of coating are possible on individual order.

Technical Specifications

Depth	600 mm
Type of product according to PP RF 616	Metal cabinets other
Type of accommodation	Wall-mounted
Maximum distributed load	100 kg
Height, U	15
Frame type	welded
Height	320...734 mm
Width	600 mm
Color	light gray (RAL 7035)
Assignment	Telecommunication wall cabinet
Weight	16.7...41 kg
Material	Cold-rolled steel
Degree of protection	IP20
Type of floor support	no
Availability of fasteners to the support (pole)	no
Type of front door(s)	Single leaf all-metal door.
Type of rear door(s)	Blind wall. With filling: metal.
Usable depth	550 mm
Type of side panels	All-metal fixed cabins
Type of door lock	3-bolt lock
Front door material	Cold-rolled steel 1.5 mm
Rear door material	Cold-rolled steel 1.5 mm
Side panel material	Cold-rolled steel 1.5 mm
Frame material	Cold-rolled steel 1.5 mm
Material of mounting profiles	Cold-rolled steel 1.5 mm
Type of coloring	Powder-coated, impact-resistant, polymer-epoxy coating
Glass	no
Wall-mounted swivel section	no

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
