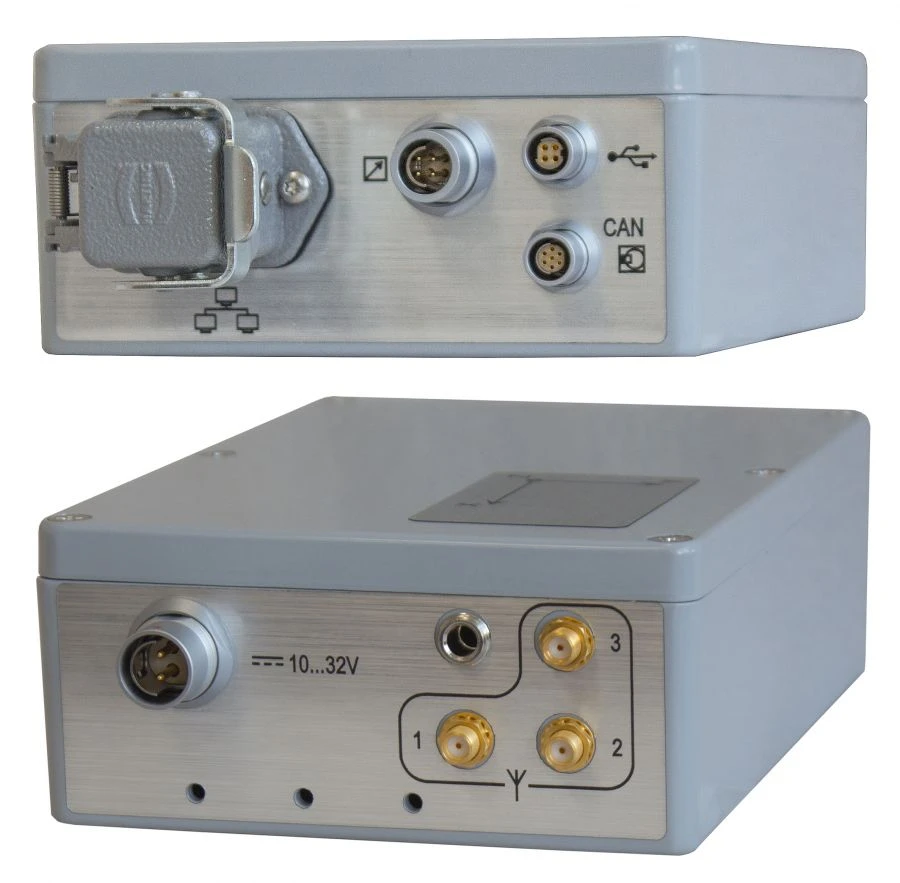

Navigation and Synchronization Kit ARK-KN3 for Accurate Positioning and Orientation

Advanced Navigation Devices

Manufacturer: IRKOS OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The product is designed to determine the location, spatial orientation and direction of motion of objects-carriers of ground, sea or air application, as well as synchronisation of the user's equipment with the Coordinated Universal Time (UTC).The product provides determination of navigation parameters (geodetic latitude, longitude and altitude), orientation angles (heading, roll, pitch), velocity vector, absolute time.To improve the accuracy and reliability of navigation data, data from GNSS and GNSS are integrated. It is possible to connect to external sensors of orientation and travelled distance (odometer, CAN-bus of the car, magnetometer, radio compass, etc.) in order to increase accuracy and reliability of navigation data in case of GNSS signal loss or substitution. The product provides the output of signs of reliability of each of the determined parameters.

Specifications

Type of navigation module

Standard accuracy

Frequency of data output

100

Maximum module supply voltage

30 V

Cold start time

Minimum operating temperature

-40 °C

Maximum operating temperature

70 °C

Tracking sensitivity, dBm

-160

Number of tracking channels

72 pcs

Number of capture channels

72 pcs

Supported navigation signals

BeiDou, GLONASS, GPS / QZSS

Supported navigation signals

GLONASS

Name

Navigation and synchronisation device

Maximum power consumption

5 W

Rated supply voltage

12/24/27 ?

Accuracy of determination of orientation angles (heading, roll, pitch)

0.5

Control interfaces

Ethernet 10/100Base-TX, USB 2.0, RS-232/485

Height (maximum calibrated)

6000 m

Course

0...360

Tangent and roll.

-30...30

Acceleration

±5 g

Angular velocity

±250°/?

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
