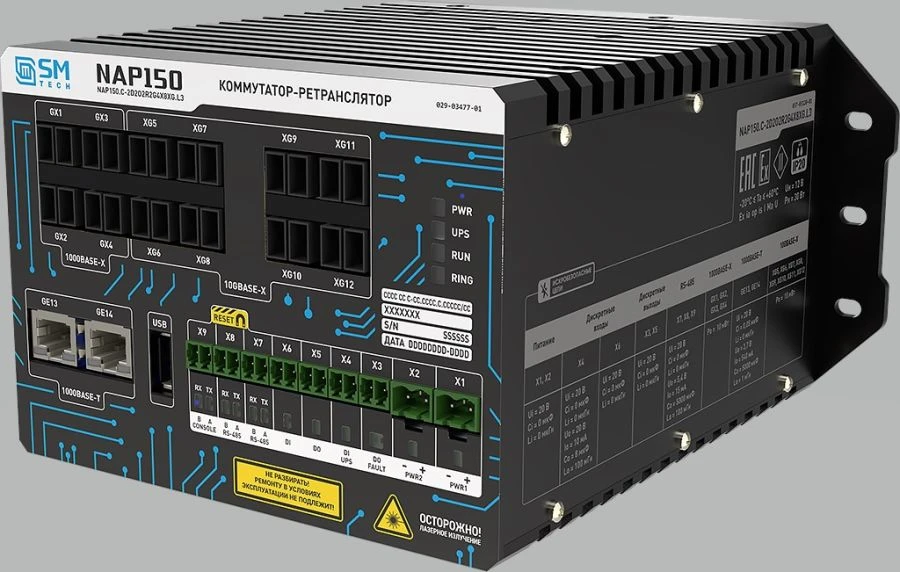

??????????-???????????? NAP150.C-2D2O2R2G4X8XG.L3

Integrated Communication Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The NAP150 Series Repeater Switch is a feature-rich, high-performance L3 network switch with enhanced security. The NAP150 is used in industrial networks as an aggregation layer switch. NAP150 has a significant performance margin due to universal interfaces operating at speeds of 10Gbit/s and 1Gbit/s and allows you to build high-speed, redundant, secure, managed, diagnosable networks of industrial facilities in harsh environments, including the presence of explosive environments. NAP150 is designed for operation as a part of MDCS multifunctional switchboard cabinet in conditions of underground workings of mines and mines and their surface structures, including dangerous by gas and dust. It is a part of the Set of aggregation switchboard in mine special explosion-proof version manufactured by SPBEK-Mining LLC.

Technical Specifications

Weight of the product without packaging, not more	6 kg
Width	262 mm
Height	185 mm
Depth	120 mm
Explosion protection marking	Ex ia op is I Ma U (RO Ex ia op is I Ma MDCS)
Operating temperature	-20...60 °C
Degree of protection against external influences	IP66 (as part of MDCS)
Protection class against electric shock according to GOST 12.2.007.0-75	III
Network switch layer	L3 - network layer
Rated DC voltage	B1/B8 2100/900 MHz V
Power consumption, max.	27 W
Interfaces	Discrete inputs (diagnostics of external power supply, unauthorised access); discrete output (alarm); RS-485 - 2 pcs. (diagnostics of IIP-M2); 1000BASE-T up to 3 pcs. (1Gbit/s); 1000Base-X up to 4 pcs. (1Gbit/s); 10GBASE-X up to 8 pcs. (10Gbit/s).
Standards	IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3ae, IEEE 802.3ad, IEEE802.3x, IEEE802.1p, IEEE802.1q, IEEE 802.1w, IEEE802.1s, IEEE 802.1x, IEEE1588
MAC address table, at least	32 ?
Routing table, at least	4 ?
Number of levels of priority order, not less than	8
Buffer size, at least	32
Throughput capacity, not less than	>155 Mpps
Switch matrix architecture	Non-lockable
Switching capacity	On speed of communication channel
Routing capacity	On speed of communication channel
Opportunities	VLAN, PVLAN; GVRP; port aggregation; UDLD; traffic control; port-based rate control; broadcast storm detection; SM-Ring, SM-Ring+ ring redundancy; SM-RP support; STP/RSTP (IEEE 802.1D/w); IGMP snooping, GMRP; static phil
L3 capabilities	Support RIPv1/v2; PIM SM, PIM DM; OSFPv2 support; static routing support; VRF ipv4 support; IGMP support; DHCP Server/Client/Server support; option 82; NAT functionality; ERPS (G.8032)
LED indication	Power indication: PWR; indication "IIP-M2 "Network"; device operation: Run; ring operation indicator: Ring; alarm indicator: Alarm; port indication: Link/ACT

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
