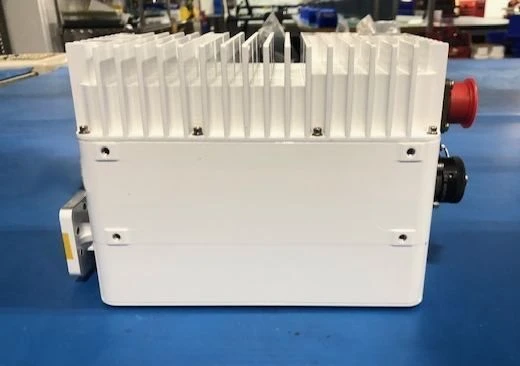

25W C-Band Transmitter for Antenna Systems - Reliable and Efficient

The 25 W C-band transmitter ZhNKU.434857.096 (hereinafter referred to as the transmitter) is designed for installation on a boom or antenna system support up to 300 mm in diameter for operation as part of stationary, mobile or portable satellite terminals. The transmitter provides signal reception, conversion of the receiving signal from the L band to the C frequency ranges, amplification and transmission of the frequency shifted receiving signal. The transmitter includes: power supply, heterodyne with FABP, converter, amplifier, filter, cooling system
