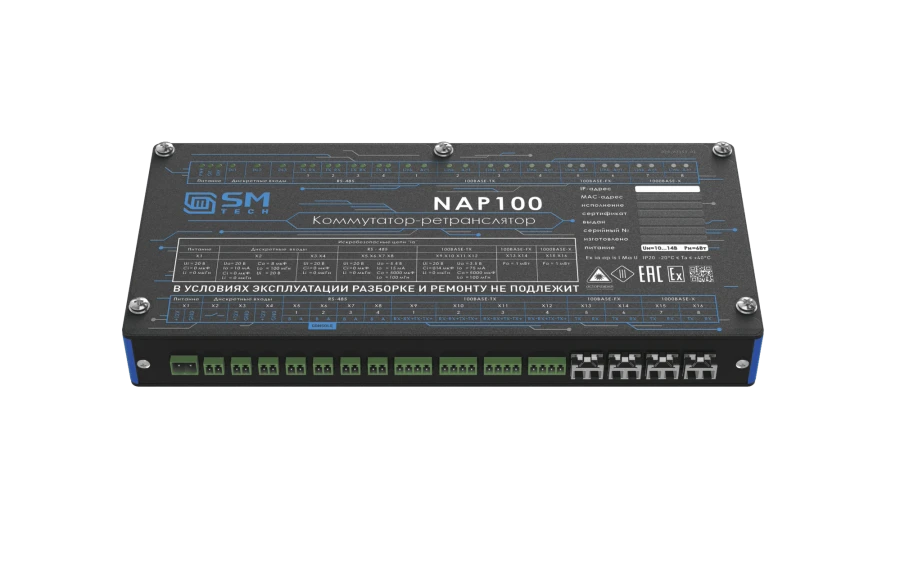

??????????-???????????? NAP100.D-3D4R4T2F2X

Switching Communication Systems

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

NAP100.D - network switch of L2 level, serves for switching of separate network segments of field buses with equipment of data transmission networks on the basis of Ethernet technology to create a single redundant, diagnosed network of the object. NAP is intended for use as equipment functioning in underground workings of mines, mines and their surface structures, including dangerous by gas and (or) dust according to the explosion protection marking and operating conditions.

Technical Specifications

Mounting	DIN rail
Opportunities	NTP, LLDP, MAC-table, RTC clock, client tftp/scp, traffic filter, port mirroring, event logging, access control.
Reservation protocols	IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP
RS485 interface operation modes	Modbus TCP/UDP, gate TCP/UDP, client/server gate UDP, RS terminal
Access protocols	SSH v1/v2, Telnet, SMbus, SNMP v2c/v3, Console (CLI)
Capacity management	Supports inbound packet filtering and outbound packet restriction. Outbound packet restriction supports all packet types. Combinations of inbound packet filter settings: Broadcast/Multicast/Flooded Uni-cast packets, Broadcast/Multicast packets.
MAC address	8K MAC address table
Safety	SSH, SSL
Switch type	Managed
VLAN	IEEE 802.1Q port-based VLAN tag-based VLAN (256 entries)/ VLAN ID (up to 4K, VLAN ID can be assigned from 1 to 4096)
Switch connectors:	Power connector: 1pc; RS-485: 4pc; Discrete input: 3pc; 1000Base-X: 2pc; 100Base-FX: 2pc; 100Base-TX: 4pc.
Transmission speed	14,880 packets/sec - Ethernet port; 148,800 packets/sec for Fast Ethernet port; 1,488,000 packets/sec for Gigabit Ethernet port
Interface Standards:	IEEE802.3z 1000Base-X; IEEE802.3u 100Base-FX; IEEE802.3u 100Base-TX; IEEE802.1Q VLAN Tag
Network switch layer	L2 - channel level
Power consumption	6 W
Rated supply voltage	B1/B8 2100/900 MHz V
Protection class against electric shock	III
Degree of protection against external influences	IP20
Operating temperature	-20...40 °C
Explosion protection marking	Ex ia op is I Ma U
Depth	45 mm
Height	130 mm
Width	272 mm
Weight of the product without packaging, not more	2.5 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
