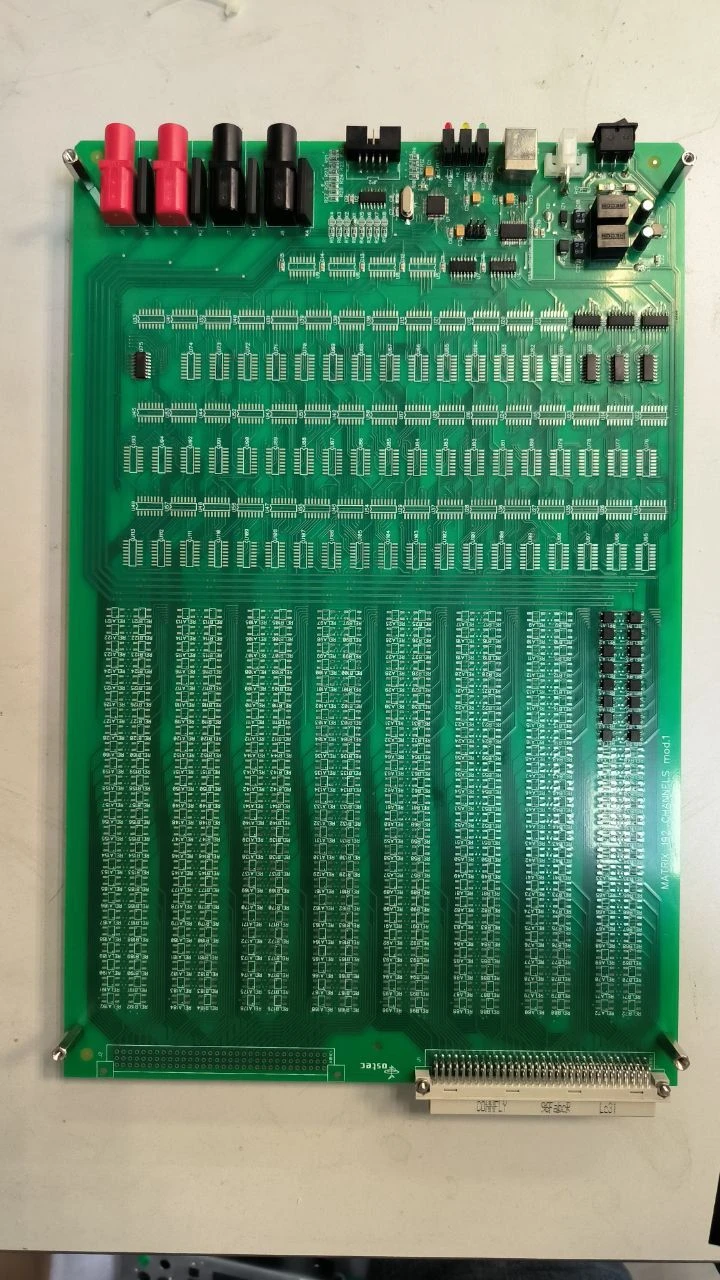

Multiplexer M192A01 - 192 Test Channel Switch

Available for Import

Multiplexer M192A01 - Efficient Switching for 192 Test Channels

Mounted Circuit Boards

Manufacturer: OSTEK-ELEKTRO LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The M192A01 multiplexer, like the M48A05, is by nature an electrical action switch. Using a relay matrix, the M192A01 switches 192 test channels on one side to 4 bus channels, which have their own switching, on the other side. In this way, the user sets the switching map of the relay matrix for the passage of electrical signals through the control means, be it computer software or an external device connected to the multiplexer. Since the multiplexer is specially designed for use in various electrical control systems, the electrical signal in this case is understood as a test effect from a measuring instrument connected to the multiplexer. On the test channel side, the product under test is connected via adapter cables.

Specifications

Height

16 mm

Width

233 mm

Length

357 mm

Relay type

Carbide

Weight

400 year

Voltage per channel, max

100 V

Current per channel, max

0.15 A

Number of test channels

192 pcs

Number of bus channels

4 pcs

Power, max

30 W

Power supply voltage

24 V

Control interfaces

USB(RS-232)

Type

Multiplexer

Assignment

electrical switchboard

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
