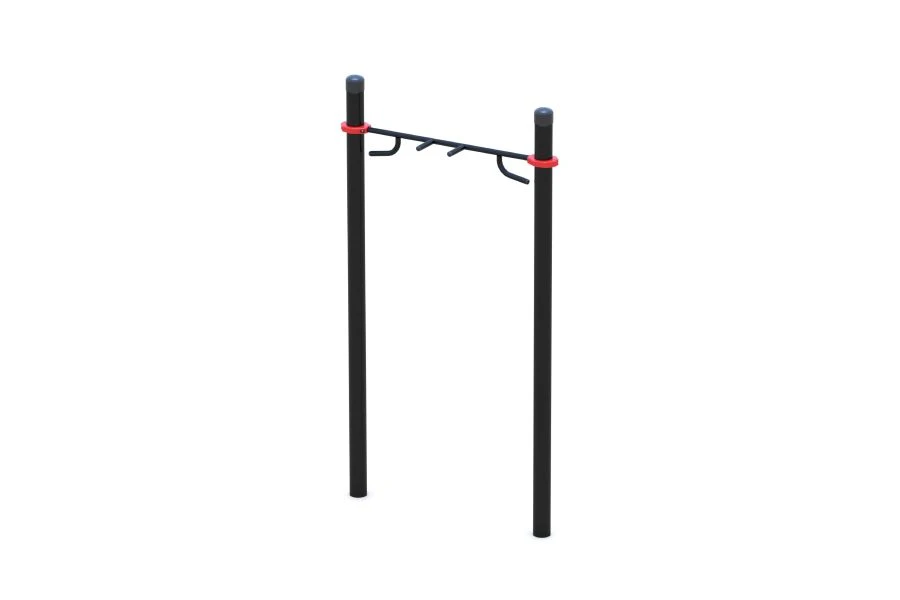

Multigrip tourniquet (three grip)

The sports complex consists of two vertical support posts and a bar of complex shape, which can be used for pulling up from hanging on the bar with three different types of hand grip. The outer diameter of the support post is 108 mm, the wall thickness of the post is 3.5 mm. The poles are made in low traumatic version, the upper part of the pole has elliptical plugs. The outer diameter of the crossbars is 34 mm, wall thickness is 3 mm, the length of the crossbar (tourniquet) is 1200 mm. The bar is located at a height from the ground level of 2400 mm. The bar has three different grips. The crossbar and the support posts are interconnected by means of clamps in the amount of two clamps per one crossbar. Height - 2531 mm, width - 263 mm, length - 1498 mm.
