Multifunctional telemetry complex "Soft:Signal" MKT-V-C-SI v. SmartNexus (GRPSH Exd)

Telecommunication Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

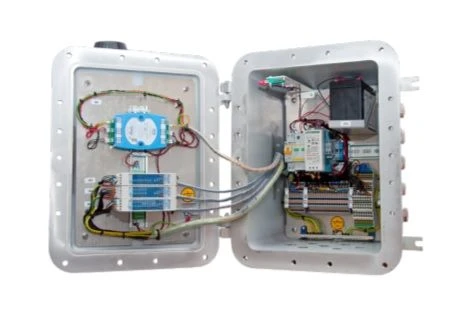

Multifunctional telemetry complex "SSoft:Signal" MKT-V-S-SI v. SmartNexus (GRPSh Exd) is designed for continuous remote control of process parameters of remote facilities involved in the transportation and distribution of heat and energy carriers (including natural gas), namely: collection, registration and transmission of electrical signals from sensors (temperature, pressure, flow, position, etc.), primary and secondary converters to the top-level computer via wired and wireless (GSM) communication channels. The complex meets the requirements of STO Gazprom gazoraspredelenie 2.4-11-1-2022.

Specifications

Hardware supported protocols MODBUS/MQTT

Wireless communication standard GSM 900/1800

Number of SIM card slots 2, pcs.

Number of GSM communication channels 1, pcs.

Number of intrinsically safe RS232/RS485 interface ports 1, pcs.

UPS autonomous operation time, not less than 24, ?.

Explosion protection marking 1 Ex d [ia Ga] IIC T5 Gb X

Overall dimensions 433 x 368 x 295, mm.

Weight, not more 40, kg.

AC mains power supply parameters of the complex (nominal values) 230 V, 50 Hz

Power consumption of the complex from the AC network, not more,W 60, W

Number of analogue measurement inputs 8, pcs.

Number of discrete inputs for connection of external sensors 17, Sch.

Number of digital outputs (open collector) 2

Maximum permissible switched voltage/current 30V/0,2A

Degree of dust and moisture protection IP66

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
