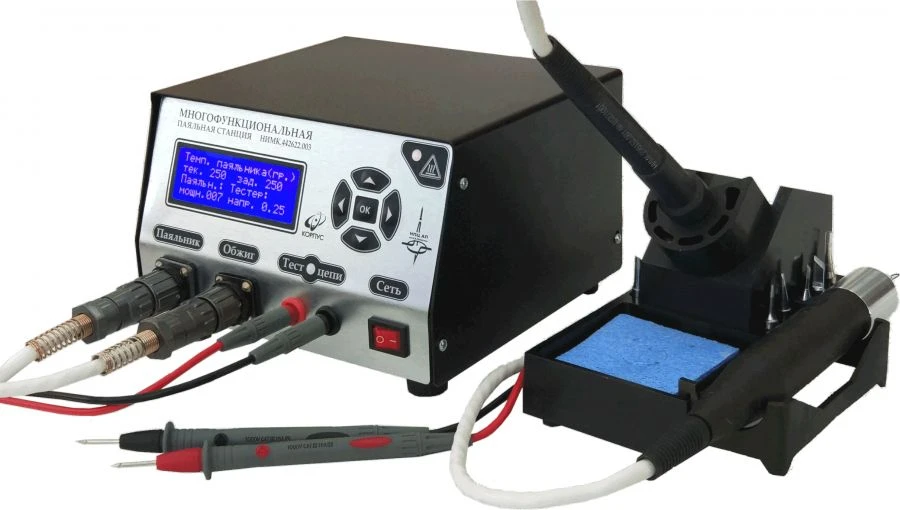

Multifunctional soldering station MPS-22.003

The multifunctional soldering station NIMK.442622.003 includes:
- control unit of soldering station NIMK.421243.003;
- soldering iron ;
- device for insulation removal of assembly wires;
- set of measuring probes ETL10;
The control unit NIMK.421243.003 provides:
- formation of the voltage applied to the soldering iron and the device for insulation removal of assembly wires,
- setting and maintenance of the soldering iron tip temperature with the required accuracy,
- checking the integrity of the electrical circuit.
The control unit includes a transformer that generates voltage to power the incoming electronic blocks and external devices connected to the control unit and, providing galvanic isolation of the supply voltage of 220 V from the supply voltage of the soldering iron, the device for removing the insulation of the mounting wires, the device for checking the integrity of circuits and other peripheral blocks.
The unit also includes a central processor unit BTSP-44.003, which provides the formation of the...
