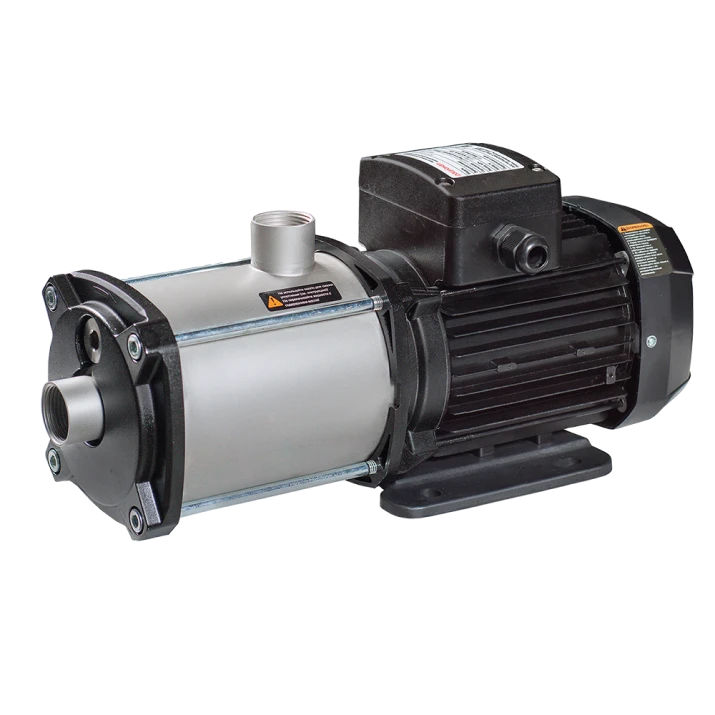

Multi-Stage Horizontal Self-Priming Pump Rz-H 32-4/40-3/1.0 for Water Supply Systems

Liquid Transfer Pumps

Manufacturer: Rational LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Horizontal multistage normal suction pump Rz-H 32-4/25-3/0,55 Horizontal multistage normal suction pump Rz-H 25-2/46-3/0,75 Horizontal Multistage Horizontal Normal Suction Pump Rz-H 40-16/25-3/2,2 Horizontal multistage normal suction pump Rz-H 25-2/23-3/0,37 Horizontal multistage normal suction pump Rz-H 40-8/27-3/1,1

Horizontal multistage normal suction pump Rz-H 32-4/30-3/0,75 Horizontal multi-stage normal suction pump Rz-H 40-8/45-3/2,2 Horizontal multi-stage normal suction pump Rz-H 40-16/34-3/3,0

Description

Normal suction multistage horizontal pump Rz-H is designed for private and industrial systems of hot and cold water supply, pumping and pressure boosting of potable or slightly contaminated water in residential buildings and agricultural enterprises, as well as in other areas. Maximum working pressure 10 bar. Maximum temperature of the pumped liquid +68 C.

Maximum ambient temperature +40 C. Motor type three-phase. Connection to the mains 400 V / 50 Hz.

Heat carrier - water, propylene glycol up to 40%.

Specifications

Connection of the pressure side connection

G1"

Connecting the suction side branch pipe

G1 1/4"

Maximum flow rate

6.5

Rated motor power

1 kW

Maximum head

49 m

Service life

10 year

Nominal speed

2900
